Rear suspension component layout (vehicles without SLS)

Make

Land Rover

Model

Discovery II (UK)

Section

Description and operation › Rear suspension component layout (vehicles without SLS)

Rear suspensionRear suspension component layout (vehicles without SLS)

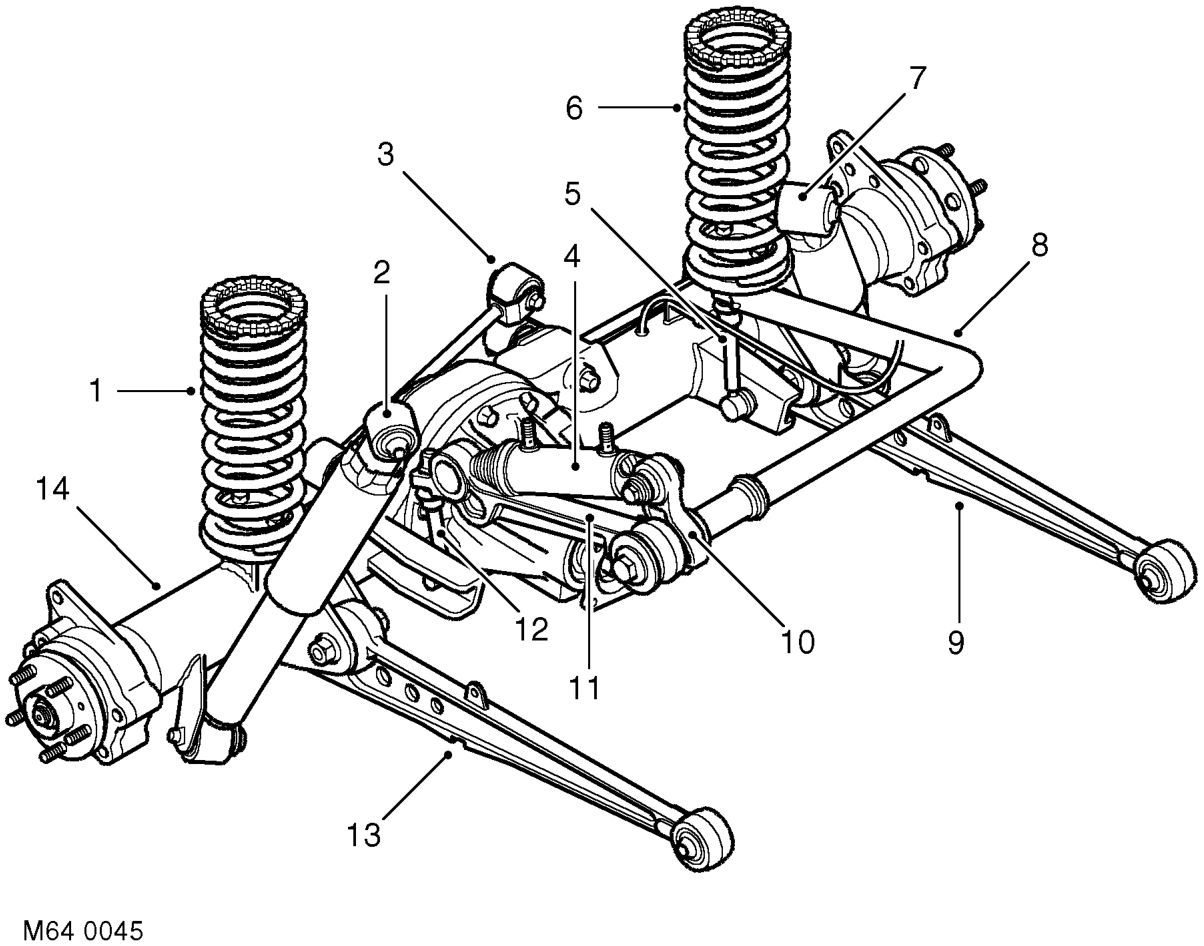

Rear suspension component layout (vehicles without SLS)

1 Coil spring RH 2 Damper RH 3 Watts linkage 4 ACE actuator (if fitted) 5 Anti-roll bar link LH 6 Coil spring LH 7 Damper LH

8 Torsion/Anti-roll bar 9 Radius arm LH 10 ACE short arm (if fitted) 11 ACE long arm (if fitted) 12 Anti-roll bar link RH 13 Radius arm RH 14 Rear axle
