L322 Range Rover Service Procedures
INTERIOR FITTINGS
REPAIRS 76-3-11

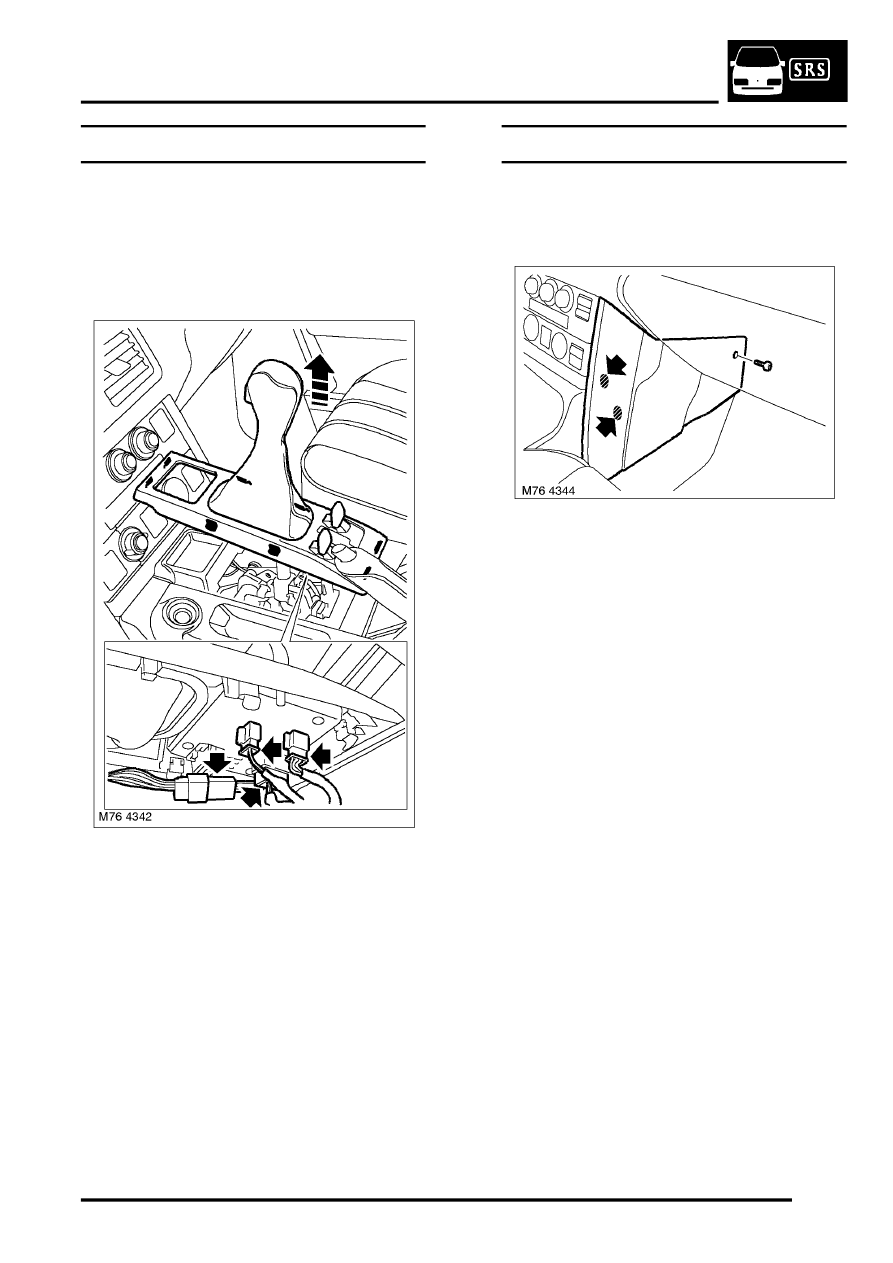

Cover - automatic transmission selector
$% 76.25.09
Remove
1. Turn ignition key to position II, depress brake
pedal and move gear lever to 'D' drive, turn
ignition off.
2. Release clips and gear selector cover from
centre console.
3. Carefully disconnect 4 multiplugs from gear
selector panel.
4. Remove gear lever knob and cover by pulling
sharply upward.
5. Release clips securing gear lever gaiter to
centre console cover, remove knob and gaiter.
Refit
1. Position cover and connect multiplugs, secure
cover to centre console.
2. Fit gear lever knob to gear lever.
3. Fit gaiter to centre console and secure with
clips.
4. Turn ignition key to position II, return gear lever
to Park, turn ignition off.
Closing panel - centre console
$% 76.25.31
Remove
1. Remove screw securing closing panel to fascia.
2. Release 2 clips securing closing panel and
remove from lower fascia.
NOTE: Do not carry out further dismantling if
component is removed for access only.
3. Remove 6 screws securing trim finisher to
closing panel. Remove finisher.
4. Remove damper.
5. Remove 2 trim clips.
Refit
1. Fit trim clips to finisher.
2. Fit damper.
3. Fit trim finisher to closing panel and secure with
screws.
4. Fit closing panel and tighten screw, secure to
clips.
