L322 Range Rover Service Procedures
INTERIOR FITTINGS
REPAIRS
76-3-3

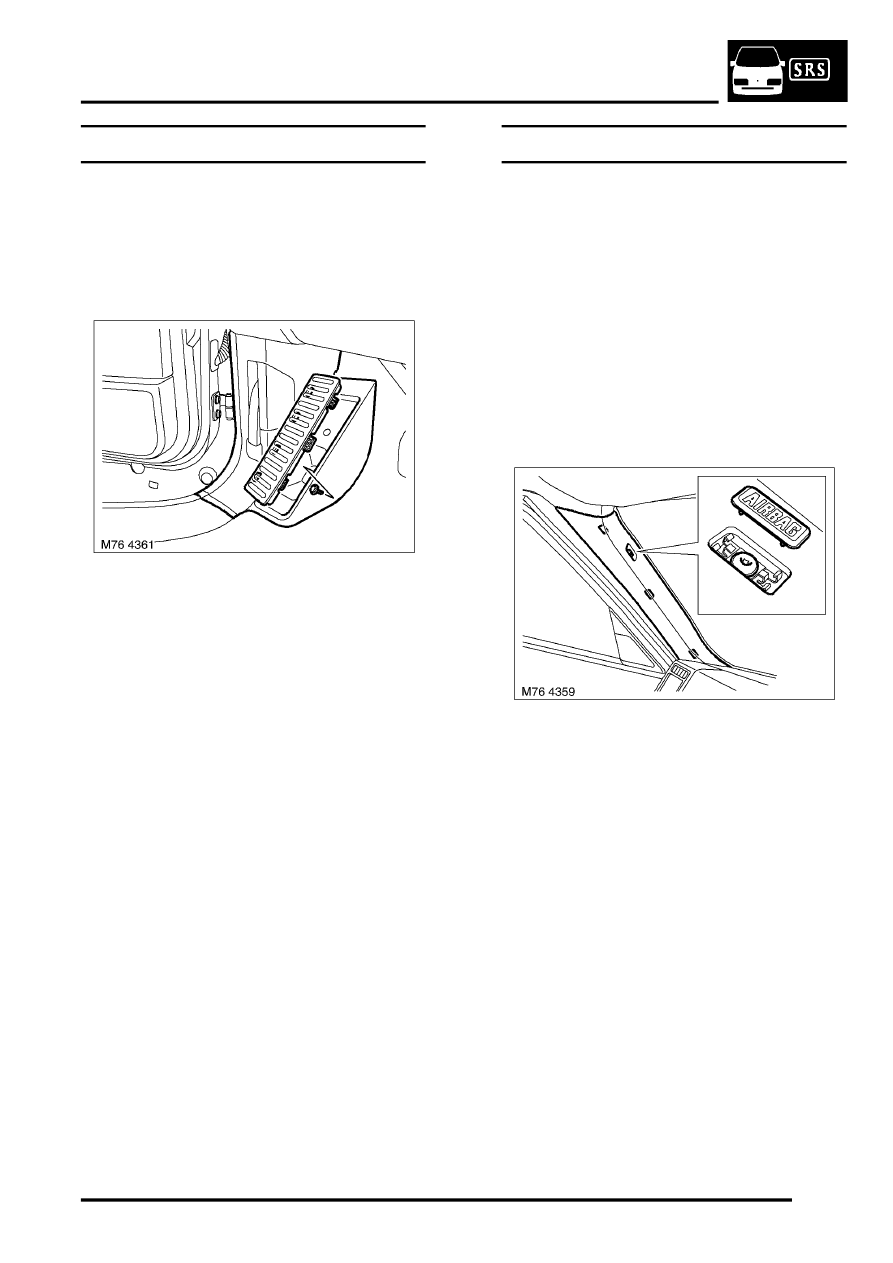

Foot rest finisher - LHD
$% 76.13.24
Remove
1. Remove carpet retainer.
2. Release 4 clips securing inner edge of footrest
pad to finisher, roll pad clockwise and remove.
3. Remove bolt securing footrest finisher to body.
4. Lift bonnet lock release handle and withdraw
finisher from clips. Pull horizontal and rearward
to remove.
Refit
1. Fit finisher to 'A' post and secure with clips.
2. Fit bolt securing footrest finisher to body and
tighten to 3 Nm (2.2 lbf.ft).
3. Fit footrest pad and secure clips.
4. Fit carpet retainer.
Trim finisher - 'A' post - upper
$% 76.13.26
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
Remove
1. Make the SRS system safe.
Supplementary Restraint System (SRS)
Precautions.
2. Release door aperture seal.
3. Remove cover from screw.
4. Remove Torx screw securing 'A' post trim.
5. Release 3 clips securing 'A' post trim and
remove trim.
CAUTION: The airbag is mounted directly
under this finisher, extreme care is
necessary.
6. Remove retaining clips from trim.
Refit
1. Fit retaining clips to trim.
2. Fit 'A' post trim and tighten screw to 2 Nm (1.5
lbf.ft).
3. Fit screw cover.
4. Fit seal to door aperture.
5. Connect battery leads, earth lead last.
