L322 Range Rover Service Procedures
INTERIOR FITTINGS
76-3-12 REPAIRS
Switch panel - air suspension
$% 76.25.41
Remove
1. Remove heating control assembly.
REPAIRS, Controls - heater (ECU).

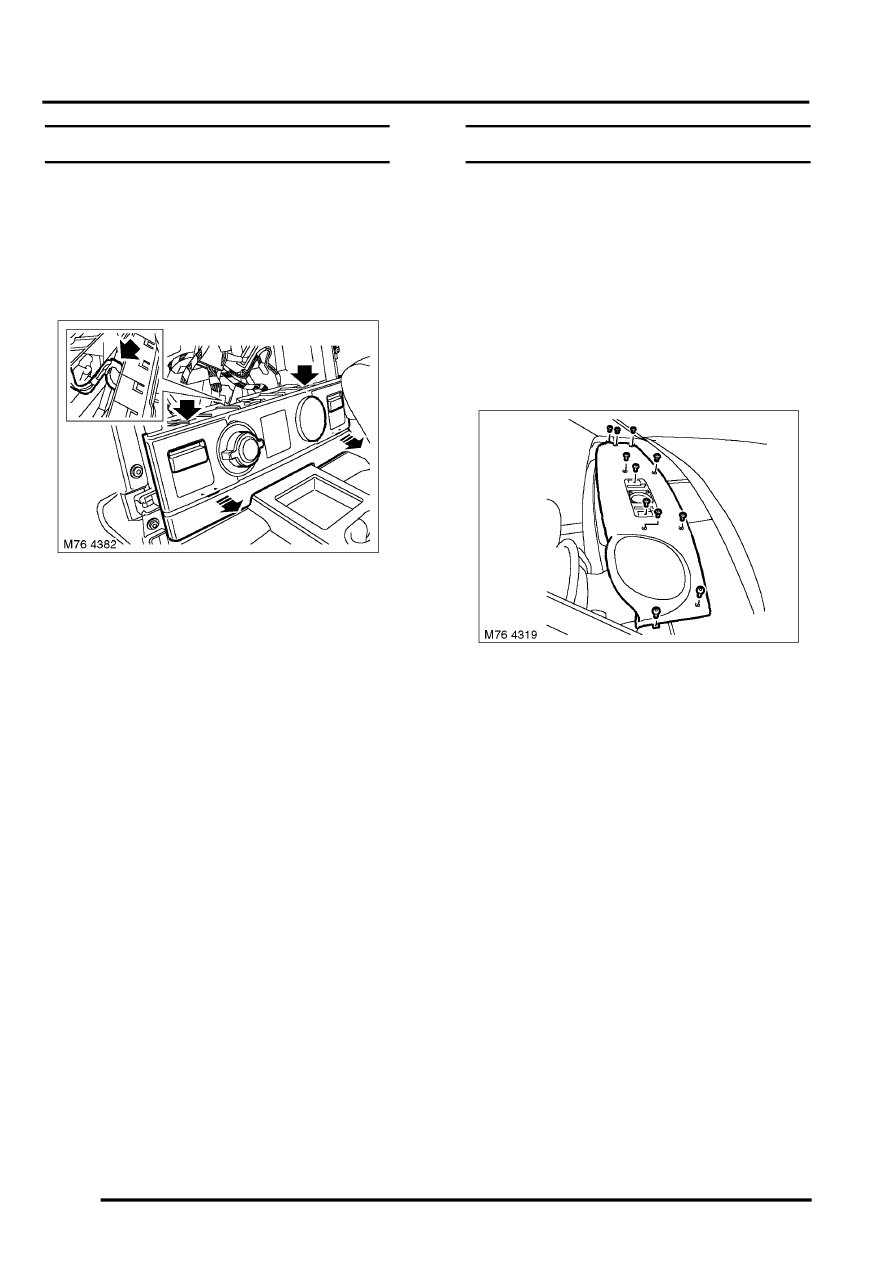

2. Carefully release clips securing air suspension
switch panel, disconnect multiplug and remove
the panel.
Refit
1. Position air suspension switch panel, connect
multiplug and secure panel to carrier.
2. Fit heating control assembly.
REPAIRS, Controls - heater (ECU).
Top rail - fascia
$% 76.46.04
Remove
1. Remove drivers side upper trim finisher.
Finisher - upper - drivers side.
2. Remove passenger side upper trim finisher.
Finisher - upper - passenger's side.
3. Carefully release clips securing centre grille to
top rail. Remove grille.
4. Remove 11 Torx screws securing top rail to
fascia, carefully pull top rail rearward and
release.
5. Disconnect speaker multiplug and remove top
rail.
NOTE: Do not carry out further dismantling if
component is removed for access only.
6. Remove 4 Torx screws securing speaker to top
rail and remove speaker.
