Bladder - lumbar support - front seat (page 2 of 2)

SEATS

REPAIRS 76-5-17

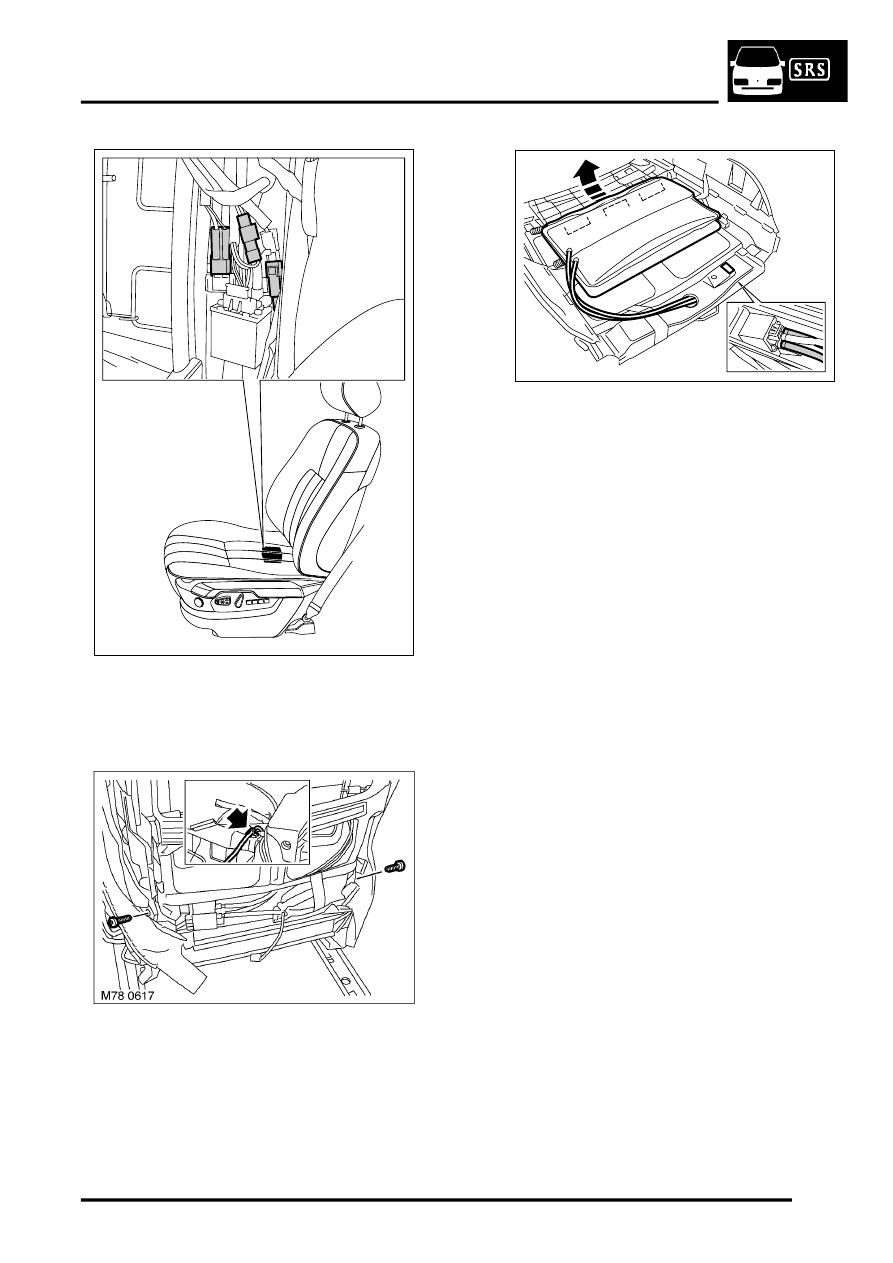

10. Disconnect multiplugs from lumbar pump and

valve.

11. Disconnect multiplug from heated seat circuit.

12. Release harness from retaining clip and feed

harness through squab cover.

13. Remove 2 Torx bolts and remove squab frame

from seat frame.

14. Raise front of squab cover to gain access to

lumbar bladder.

15. Disconnect vacuum and pressure pipes from

bladder.

16. Release bladder from frame.

Refit

1. Fit and secure bladder to frame.
2. Connect vacuum and pressure pipes to

bladder.

3. Position squab frame to seat frame, fit Torx

bolts tighten to 25 Nm (18 lbf.ft).

4. Route lumbar harness through squab cover

and secure to frame.

5. Connect multiplug to heated seat circuit.
6. Connect lumbar harness multiplugs to lumbar

pump and valve.

7. Position backboard to seat assembly, fit studs

securing lower of backboard.

8. Position and fit both sides of squab cover to

backboard.

9. Position lower squab cover to backboard and

staple.

10. Fit backboard tension straps to under seat

retaining clips.

11. Fit armrest to boss and secure with Allen bolt,

tighten to 25 Nm (18 lbf.ft).

12. Fit seat assembly.

 +

 SEATS, REPAIRS, Front seat.
