SEATS
76-5-34 REPAIRS

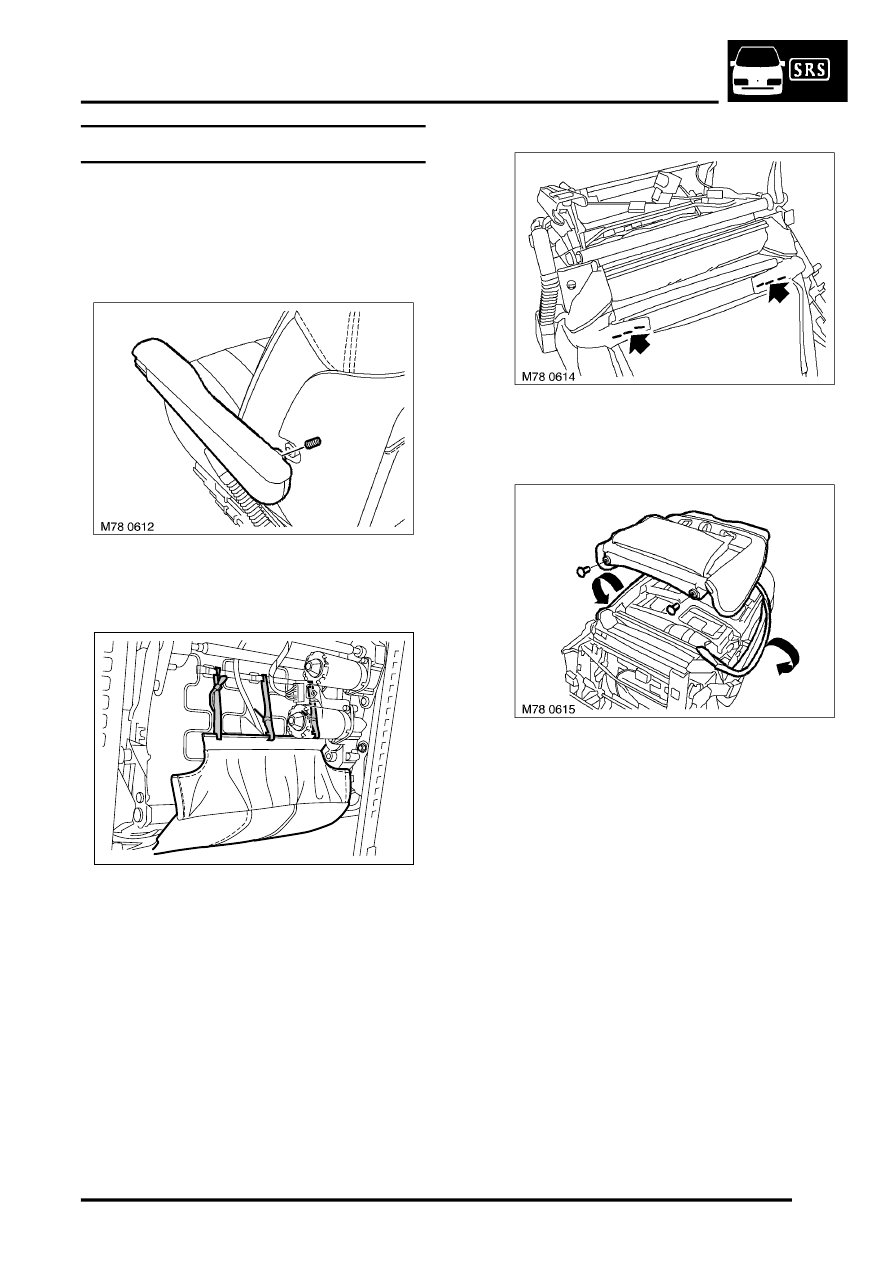

10. Disconnect harness multiplugs from lumbar
pump and valve.
11. Disconnect multiplug from heated seat circuit.
12. Release harness from retaining clip and feed
harness through squab cover.
13. Remove 2 Torx bolts and remove squab frame
from seat frame.
14. Raise front of squab cover to gain access to
head rest guides.
15. Release headrest retaining clips, remove
headrest guides.
16. Remove squab cover and pad from frame.
17. Remove and discard 12 hog rings and remove
cover from pad.
Refit
1. Position squab cover to pad and secure with
hog rings.
2. Position and fit squab cover to frame.
3. Fit and secure headrest guides in squab frame.
4. Position squab frame to seat frame, fit Torx
bolts tighten to 25 Nm (18 lbf.ft).
5. Route lumbar harness through squab cover
and secure to frame.
6. Connect multiplug to heated seat circuit.
7. Connect lumbar harness multiplugs to pump
and valve.
8. Position backboard to seat assembly, fit studs
securing lower of backboard.
9. Position and fit both sides of squab cover to
backboard.
