Motor - squab (page 2 of 2)

SEATS

REPAIRS 76-5-23

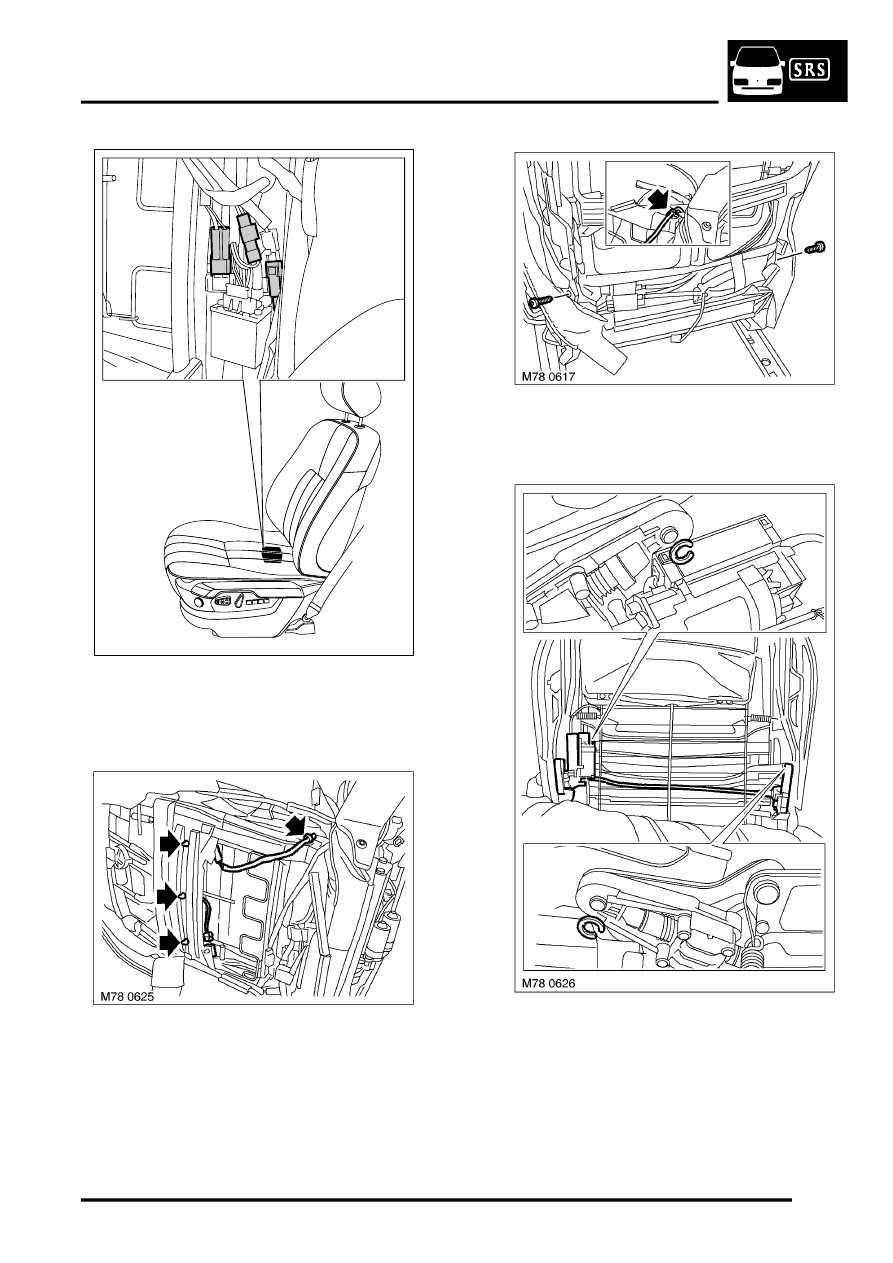

11. Disconnect multiplugs from lumbar pump and

valve.

12. Disconnect multiplug to heated seat circuit.

13. Release harness from 4 retaining clips.

14. Remove 2 Torx bolts and remove squab frame

from seat frame.

15. Remove 2 'E' clips securing motor assembly.
16. Carefully prise motor assembly from mounting

bosses and release drive cable from assembly.

M78 0616
