Range Rover P38
70
BRAKES
NEW RANGE ROVER
20
REPAIR
2. Position container to collect fluid.
3. Position cloth beneath pump to catch spillage.
4. Release clip securing reservoir hose to pump.
5. Release reservoir hose from pump. Drain
reservoir into container.
Manual Vehicles only.
6. Reposition container beneath clutch reservoir
hose.
7. Disconnect clutch master cylinder hose. Drain
fluid into container.
All Vehicles.
8. Plug pipes and connections.
9. Remove bolt. Collect reservoir securing bracket.
10. Remove reservoir from 2 seals.
11. Remove reservoir seals from booster unit.
CAUTION: Do not allow seal debris to
enter booster ports.
12. Plug reservoir and booster ports.
13. Release 2 clips securing fluid level switch to
reservoir. Remove switch.
Refit
14. Fit fluid level switch to reservoir.
15. Remove plugs from booster ports and reservoir.
16. Lubricate new reservoir seals with clean brake
fluid. Fit to booster ports.
17. Position reservoir. Engage fully into seals.
18. Position reservoir bracket. Secure with bolt.
Tighten to
10 Nm. (7 lbf.ft)
Manual Vehicles only.
19. Remove plug from clutch master cylinder hose.
Connect hose to reservoir. Secure with clip.
All Vehicles.
20. Remove plug from reservoir hose and pump.
Connect hose to pump. Secure with clip.
21. Connect fluid level switch multiplug.
22. Fill reservoir.
See LUBRICANTS, FLUIDS AND
CAPACITIES, Information.
23. Bleed brake system.
See this section.
Manual Vehicles only.
24. Bleed clutch system.
See CLUTCH, Repair.
ABS SENSORS - FRONT
Service repair no - 70.65.30
WARNING: If a sensor is removed for any
reason, a NEW sensor bush must be fitted.
Remove
1. Raise the vehicle.
WARNING: Support on safety stands.
2. Remove road wheel.

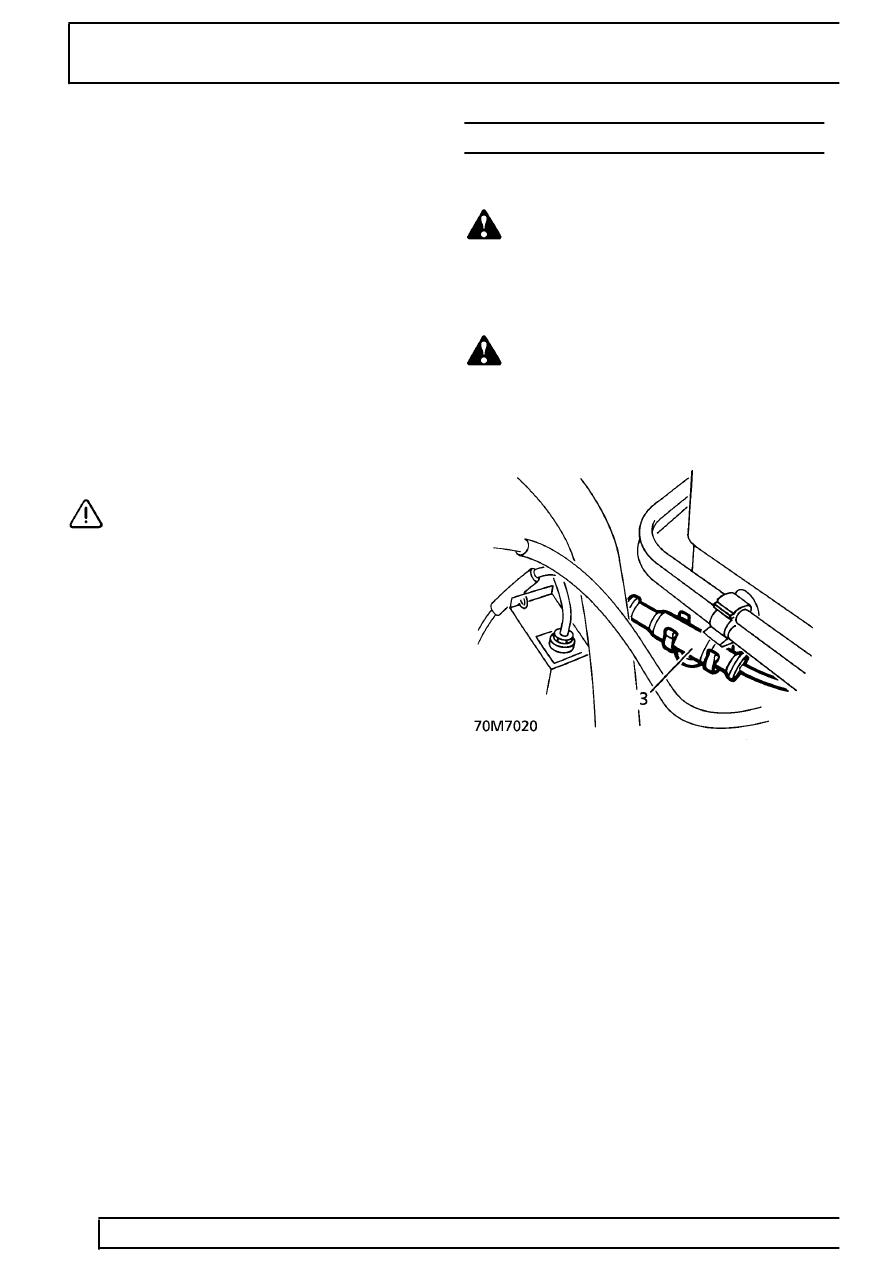

3. Release sensor harness multiplug from clip.
Disconnect multiplug.
4. Release sensor harness from 3 brackets.
