Range Rover P38
70
BRAKES
NEW RANGE ROVER
12
REPAIR
BRAKE PADS - REAR
Service repair no - 70.40.03
Service tool:
LRT-70-500 - Piston clamp
Remove
1. Raise the vehicle.
WARNING: Support on safety stands.
2. Remove rear road wheels.

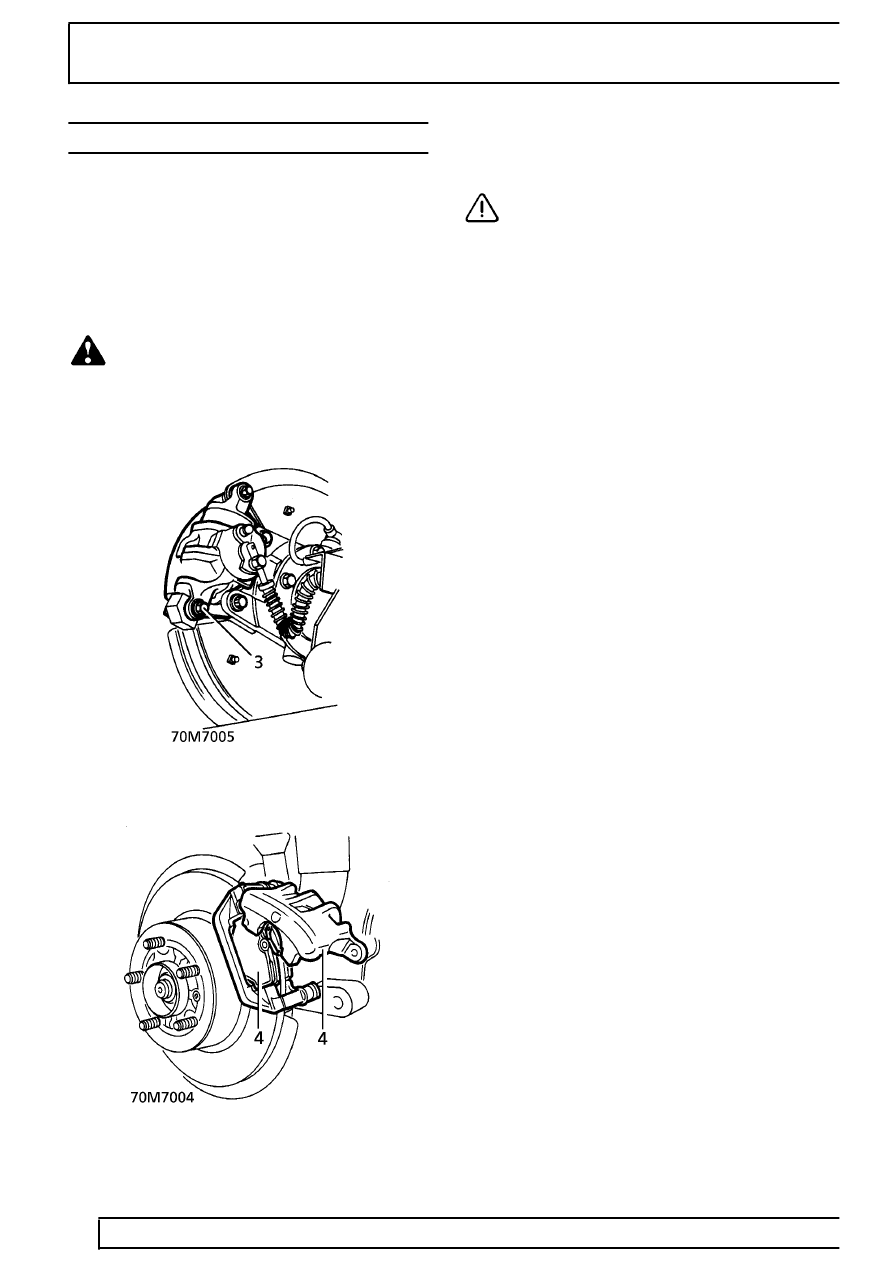

3. Remove bolt from lower guide pin of each
caliper.
4. Swivel caliper upwards, remove brake pads.
5. Using piston clamp, LRT-70-500, press caliper
piston fully into bore.
CAUTION: Ensure that displaced fluid
does not overflow from reservoir.
6. Clean faces of piston and pad locations in
caliper.
7. Check condition of guide pin boots, replace if
perished or split.
Refit
8. Fit brake pads with chamfer towards leading
edge of disc (towards rear of vehicle). Swivel
calipers downwards into position.
9. Fit new guide pin bolts, tighten to
30 Nm. (22
lbf.ft).
10. Apply brake pedal several times to locate pads.
11. Check fluid reservoir level. Top-up if necessary
using correct grade of fluid.
See LUBRICANTS,
FLUIDS AND CAPACITIES, Information.
12. Refit road wheels. Tighten nuts to
108 Nm. (80 lbf.ft).
13. Remove safety stands. Lower vehicle.
