Range Rover P38
70
BRAKES
NEW RANGE ROVER
10
REPAIR
BRAKE DISC AND SHIELD - REAR
Service repair no - 70.10.34 - Rear disc
Service repair no - 70.10.19 - Disc shield
Remove
1. Remove rear brake pads.
See this section.

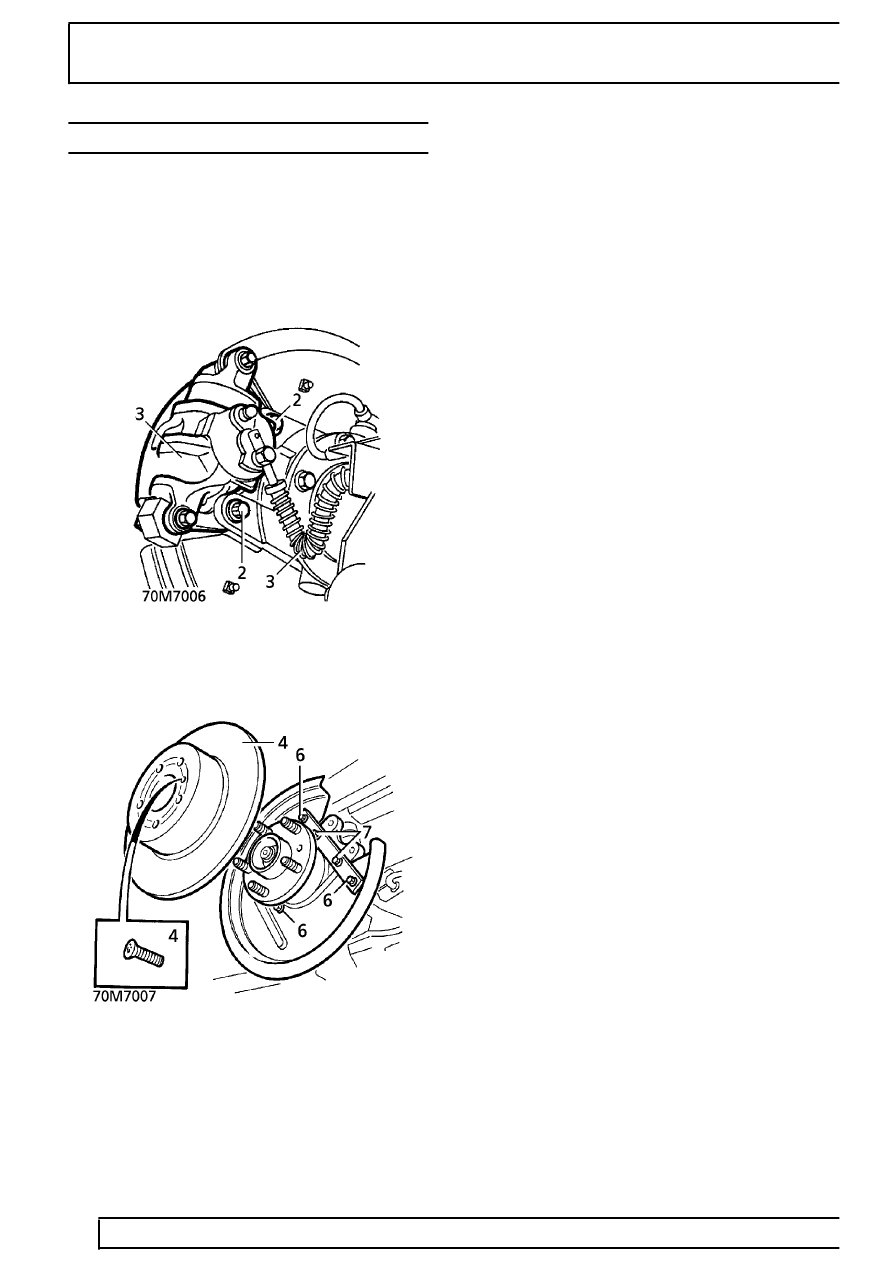

2. Remove 2 bolts securing caliper.
3. Tie caliper aside, ensuring brake hose is not
stressed.
4. Remove screw securing disc, remove disc.
5. Using a wire brush, remove corrosion from disc
mating faces before cleaning with a suitable
solvent.
6. Remove 3 bolts, remove disc shield.
7. Remove 2 bolts, remove shield strap.
Refit
8. Fit shield strap, secure with bolts. Tighten to
8 Nm. (6 lbf.ft)
9. Fit disc shield, fit securing bolts. Tighten to
8 Nm. (6 lbf.ft)
10. Fit brake disc, secure with screw. Tighten to
25 Nm. (18 lbf.ft)
11. Untie brake caliper.
12. Fit brake caliper, fit bolts. Tighten to
100 Nm.
(74 lbf.ft)
13. Fit rear brake pads.
See this section.
