Range Rover P38
ABS
11
REPAIR

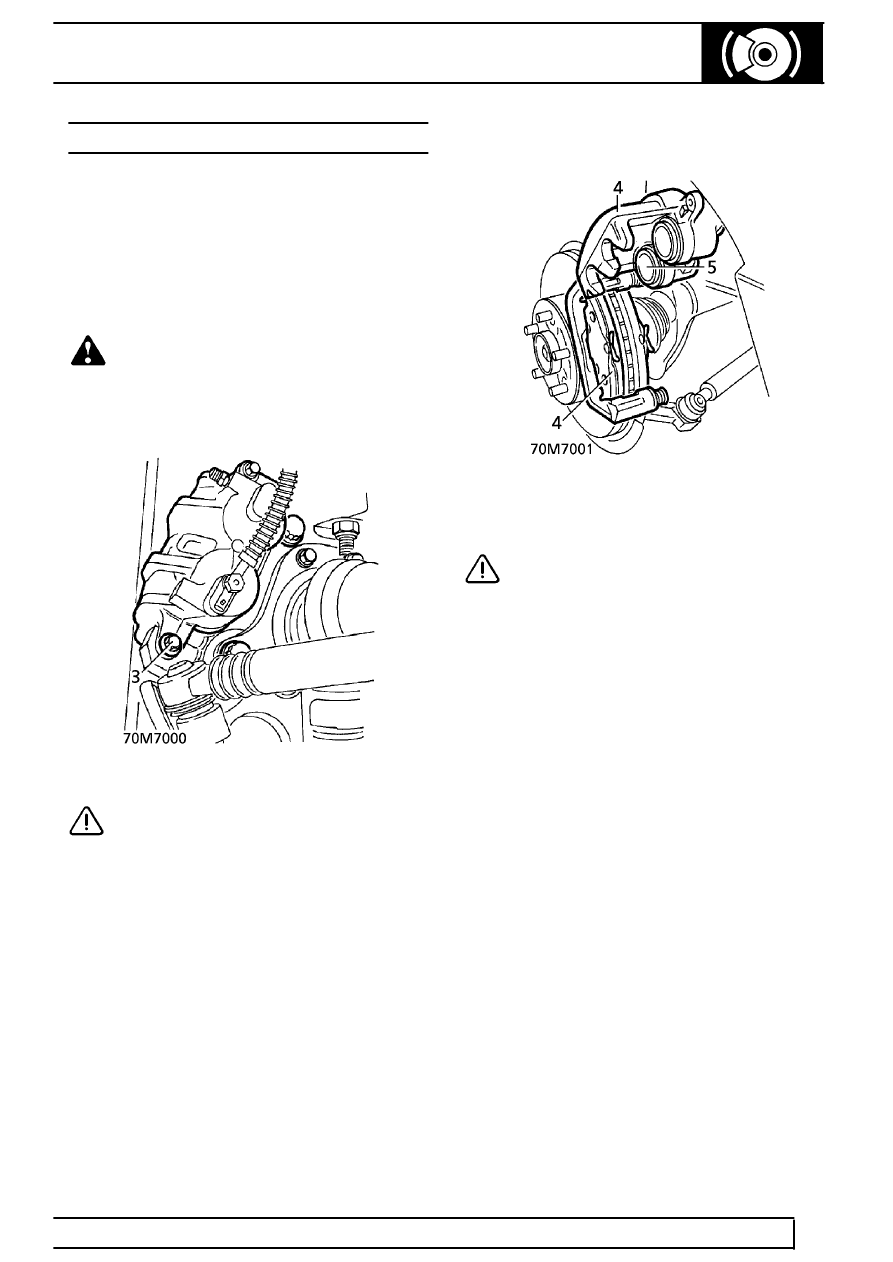

BRAKE PADS - FRONT
Service repair no - 70.40.02
Service tool:
LRT-70-500 - Piston clamp
Remove
1. Raise the vehicle.
WARNING: Support on safety stands.
2. Remove front road wheels.
3. Remove bolt from lower guide pin of each
caliper.
CAUTION: Guide pin uses a special, flange
headed bolt. DO NOT use any other type of
bolt.
4. Swivel caliper upwards, remove brake pads.
5. Using piston clamp, LRT-70-500, press caliper
pistons fully into bores.
CAUTION: Ensure that displaced fluid
does not overflow from reservoir.
6. Clean faces of pistons and pad locations in
caliper.
7. Check condition of guide pin boots, replace if
perished or split.
Refit
8. Fit brake pads with chamfer towards leading
edge of disc (towards rear of vehicle). Swivel
caliper downwards into position.
9. Fit new guide pin bolt. Tighten to
30 Nm.
(22 lbf.ft)
10. Apply brake pedal several times to locate pads.
11. Check fluid reservoir level, top-up if necessary
using correct grade of fluid.
See LUBRICANTS,
FLUIDS AND CAPACITIES, Information.
12. Fit road wheels. Tighten nuts to
108 Nm
(80 lbf.ft).
13. Remove safety stands. Lower vehicle.
