REPAIR

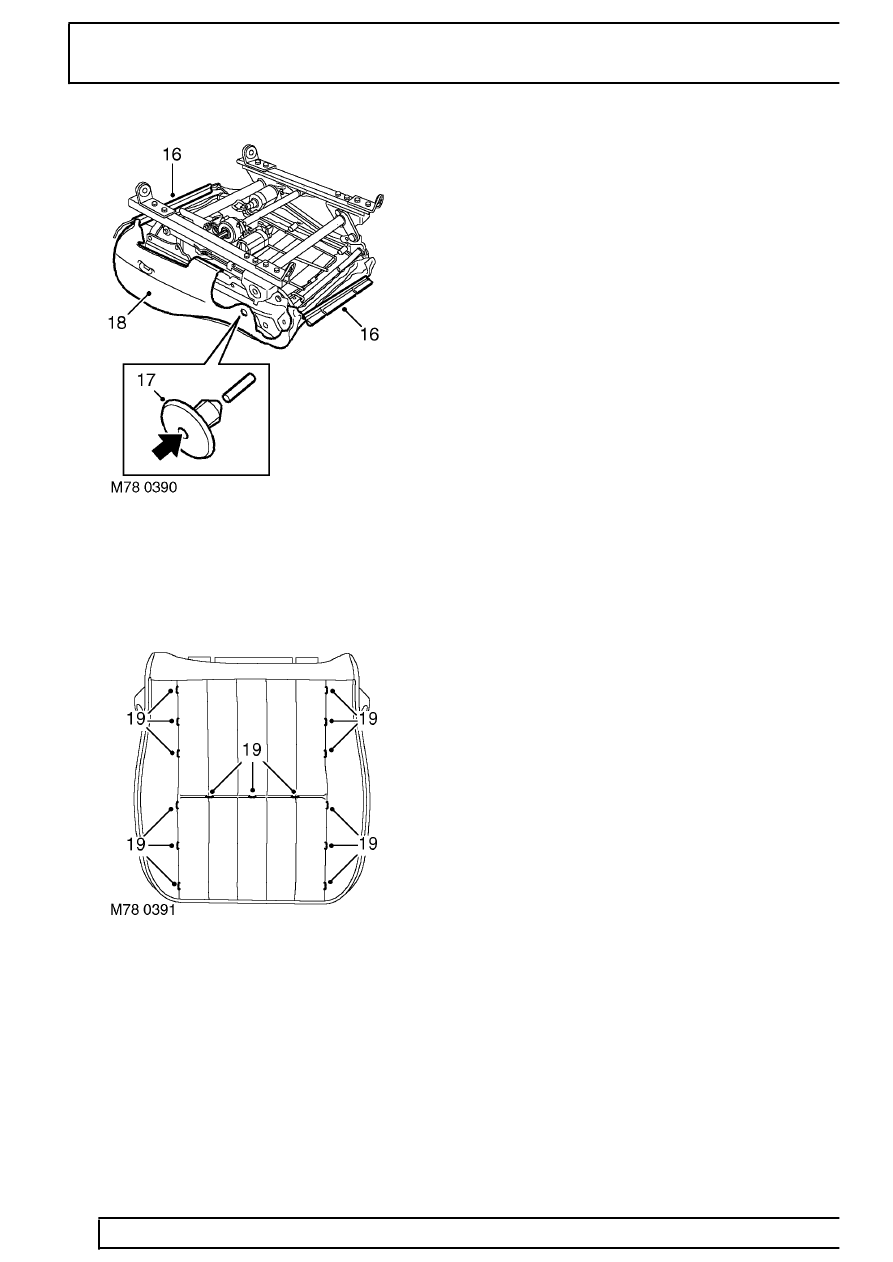

16. Release 2 retainers securing cover to frame.
17. Remove 2 studs securing cover to frame.
18. Remove cover and foam assembly from frame.
Do not carry out further dismantling if cover
and foam is removed for access only.
19. Remove 15 hog rings securing cover to foam.
Remove cover.
20. Remove retention wires from pockets in cover.
21. Remove side finisher retaining wire from cushion
cover retainer.
Refit
22. Fit side finisher retaining wire and retention wires
to cover.
23. Position cover to foam align retention wires and
fit hog rings.
24. Fit cover and foam assembly to frame.
25. Fit studs securing cover and secure retainers.
26. Fit clips securing cover.
27. Using assistance, position cushion assembly to
squab assembly.
28. Fit Torx screws securing cushion assembly to
squab assembly and tighten to
30 Nm
(22 lbf. ft).
29. Secure squab retainer and fit clips.
30. Position outer side finisher and feed harness
through, locate finisher and fit screws and
covers. Connect multiplugs to outstation.
31. Fit outer side finisher, fit screws and screw
covers.
32. Secure airbag harness connector to bracket.
33. Align harnesses and secure with cable ties.
34. Position seat belt stalk, fit bolt and tighten to
35 Nm (26 lbf.ft).
35. Fit seat.
See this section.
