Workshop Manuals Factory service & repair Land Rover
Land Rover Range Rover P38133 · 78 - SEATS
133 · Body & interior

FRONT SEAT - up to 99MY (page 2 of 2)

Make
Land Rover
Model
Range Rover P38
Section
REPAIR
78 - SEATSFRONT SEAT - up to 99MY · page 2 of 2
FRONT SEAT - up to 99MY (page 2 of 2) – Land Rover Range Rover P38

SEATS

7

REPAIR

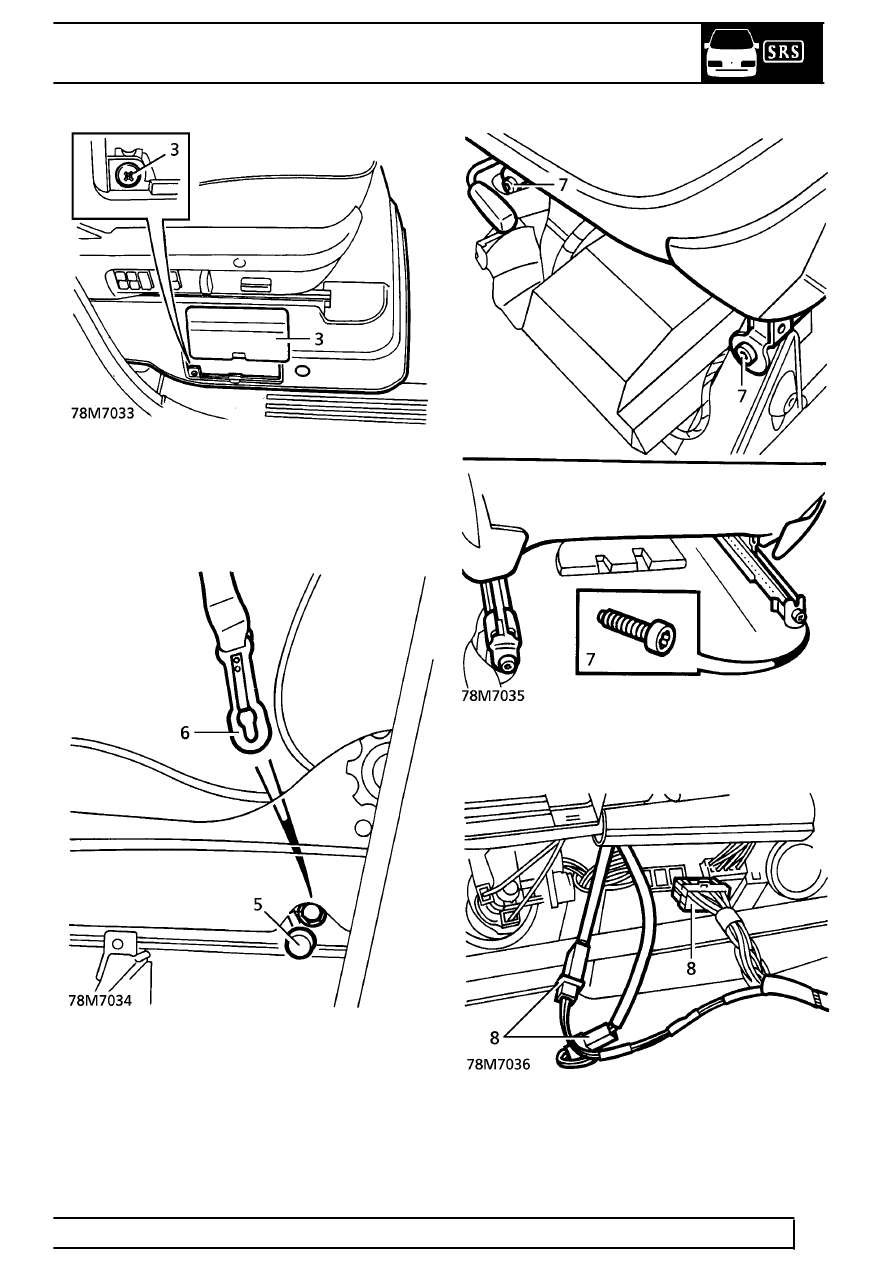

4. Remove seat base cover.
5. Remove bolt cover from seat belt lower

anchorage point.

6. Unclip seat belt from lower anchorage point.
7. Remove 4 bolts securing seat.

8. Raise seat for access. Disconnect multiplugs.

9. Remove seat.
