Automatic gearbox - EM-CVTCable - gear change · page 2 of 2

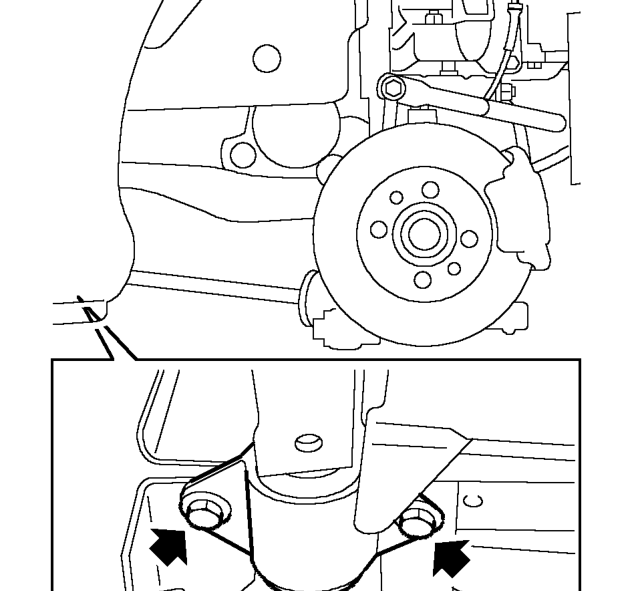

Diagram
  1. Remove 2 bolts securing both front subframe mountings to body brackets.
  2. Lower jack carefully, to allow access to closing plate bolts.

CAUTION: Care must be taken when lowering front of subframe, that no cables or pipes are stretched.

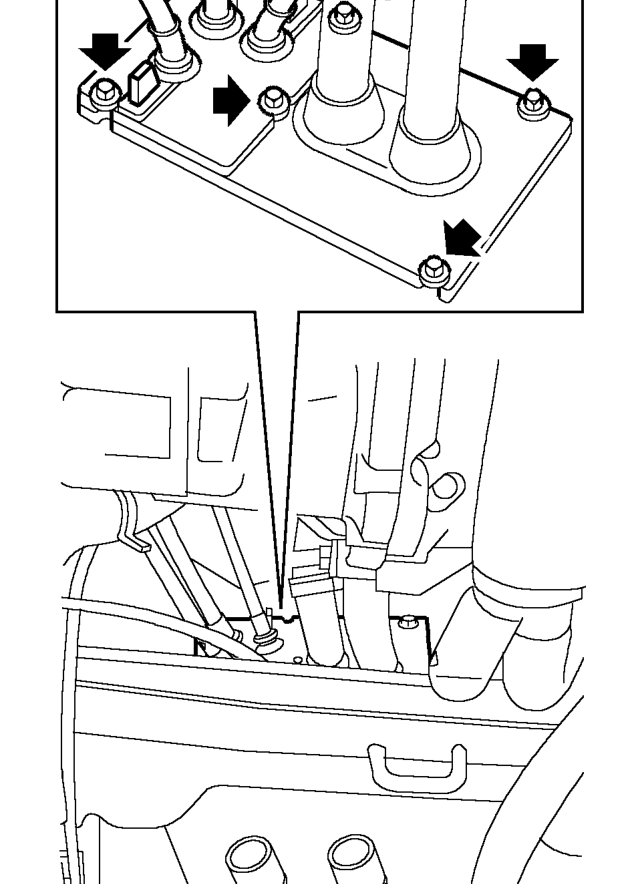

Lower jack carefully, to allow access to closing plate bolts.
  1. Release 2 lower and remove 4 remaining bolts securing closing plate to bulkhead.
  2. Apply soft soap to all closing plate cables, to ease movement of closing plate.
  3. Release closing plate from bulkhead and slide along cables, release gear change cable from grommet.
  4. Remove gear change cable from tunnel and engine compartment.
