Workshop Manuals Factory service & repair Rover
Rover 200 Workshop Manual (1995-1999)05 · Engine - K8
05 · Engine

Engine and gearbox (page 2 of 8)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - K8Engine and gearbox · page 2 of 8
Diagram

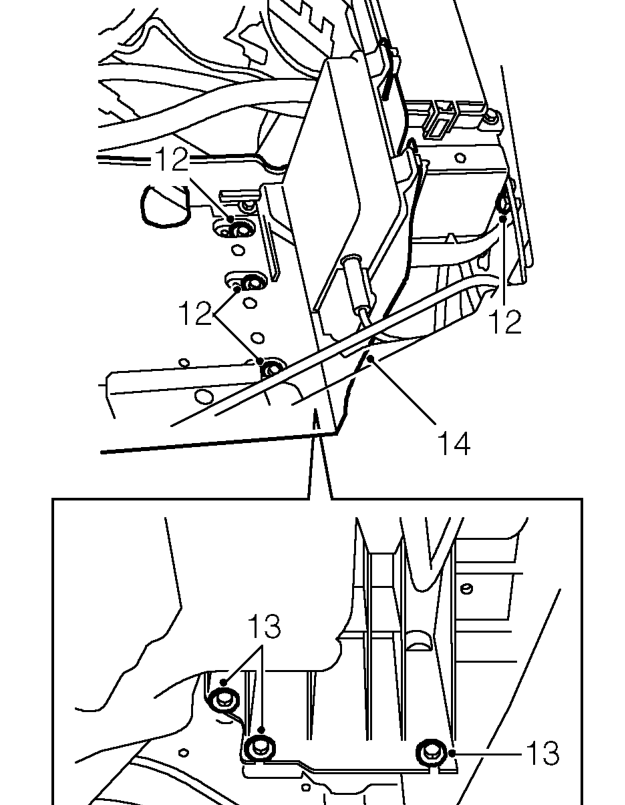

  1. Remove 4 bolts securing battery tray to body.
  2. Loosen 3 bolts securing battery tray to body.
  3. Remove battery tray.
Remove battery tray.

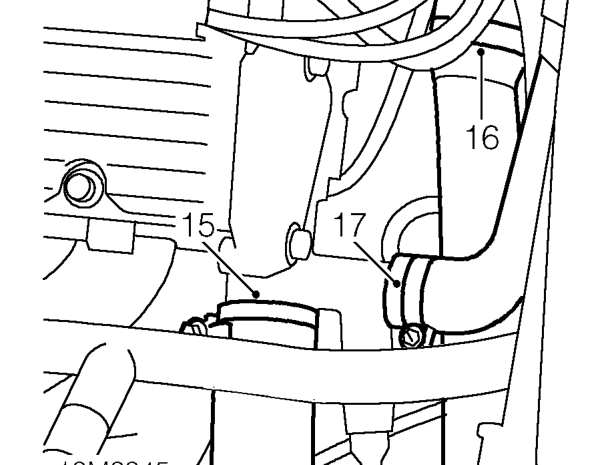

  1. Loosen clip and disconnect radiator top hose from coolant outlet elbow.
  2. Loosen clip and disconnect coolant hose from coolant rail.

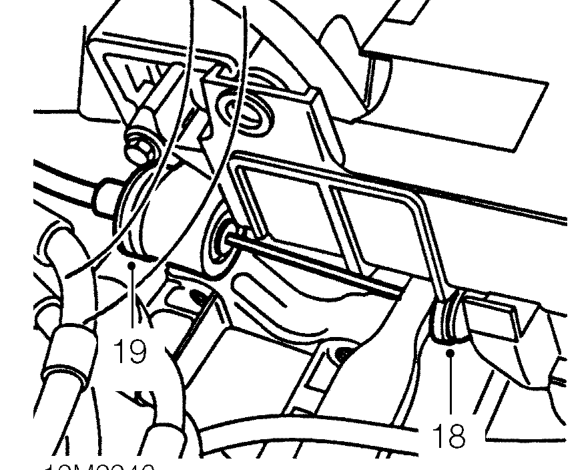

  3. Loosen clip and disconnect heater hose from coolant outlet elbow, position hose aside.
Loosen clip and disconnect heater hose from coolant outlet elbow, position hose aside.
  1. Disconnect clutch cable from clutch release lever.
  2. Release cable from abutment bracket.
