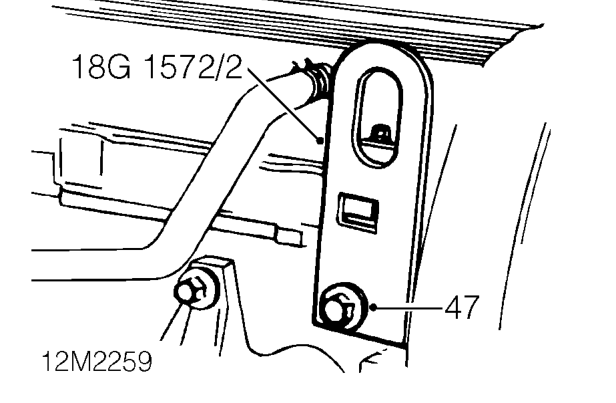

47. Fit second lifting bracket 18G 1572/2 to cylinder head and tighten bolt to 9 Nm.

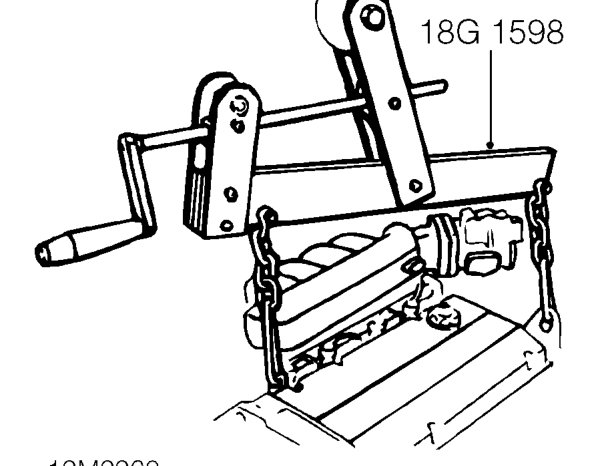

48. Connect adjustable lifting bracket 18G 1598 to engine lifting brackets.
49. Connect hoist to engine lifting bracket and raise to take weight of engine without exerting load on engine mounting bolts.

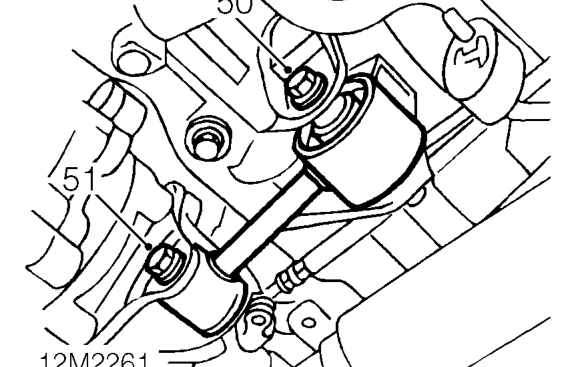

50. Loosen through bolt securing engine steady bar to subframe.
51. Remove through bolt securing engine steady bar to bracket on gearbox.
52. Remove engine LH mounting. See this section.

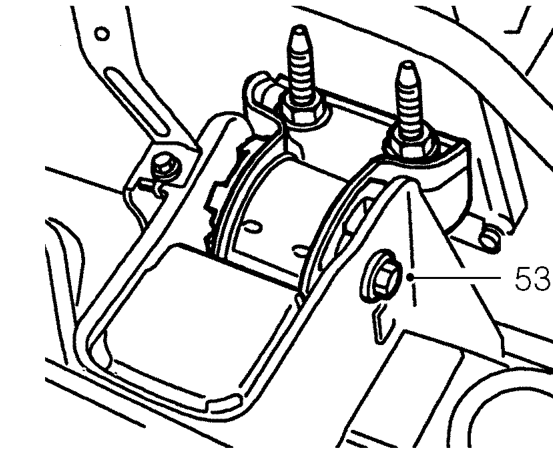

53. Remove through bolt securing engine RH mounting to body.
54. Using adjustable lifting bracket tool 18G 1598, tilt engine with the gearbox as low as possible.
55. Using assistance, manoeuvre engine and gearbox from vehicle.
56. Lower engine and gearbox assembly and disconnect hoist from adjustable lifting bracket.
