Engine - K8Engine and gearbox · page 6 of 8
Diagram

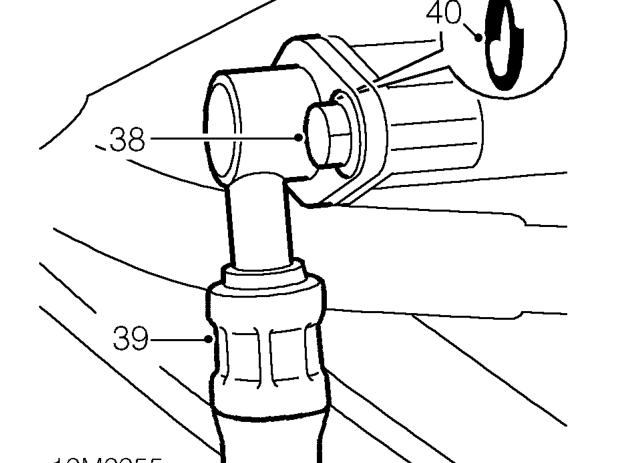

  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Disconnect fuel feed pipe from fuel rail.
  3. Remove and discard ’O’ ring.
Remove and discard ’O’ ring.

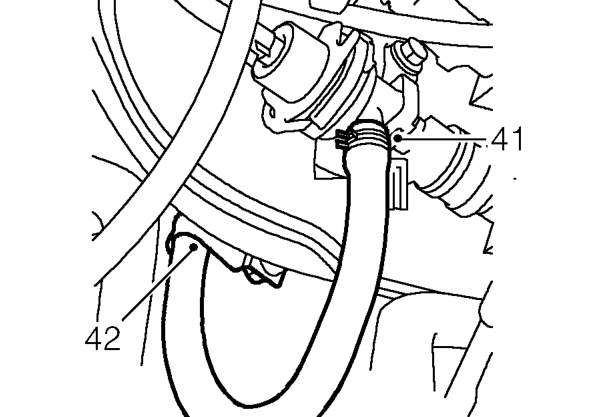

  1. Release clip and disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

  1. Release fuel return hose from clips on underside of inlet manifold and position aside.
  2. Release both drive shafts from gearbox, as detailed in Differential oil seal. See MANUAL GEARBOX - ’R65’, Repairs.
Release both drive shafts from gearbox, as detailed in Differential oil seal. See MANUAL G

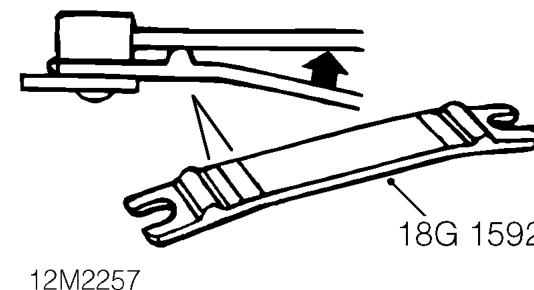

  1. Using tool 18G 1592 release gear selector linkage ball joint from gear selector lever.
  2. Using tool 18G 1592 release gear change linkage ball joint from gear change lever.
Using tool 18G 1592 release gear change linkage ball joint from gear change lever.

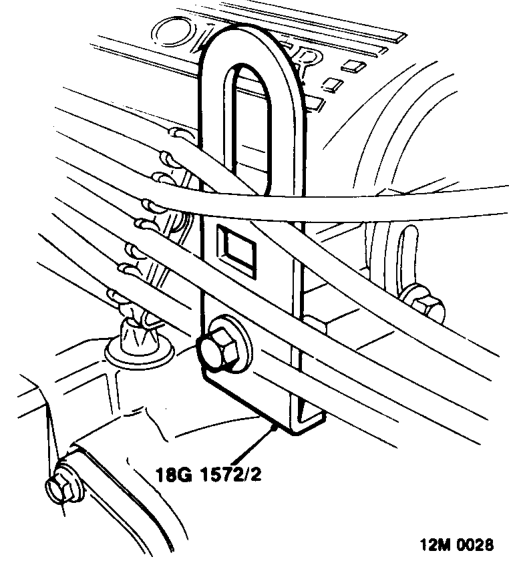

  1. Fit lifting bracket 18G 1572/2 to cylinder head and tighten bolt to 9 Nm.
