Rover 200 Workshop Manual (1995-1999)05 · Engine - K8
05 · Engine

Engine and gearbox (page 5 of 8)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine - K8Engine and gearbox · page 5 of 8
Diagram

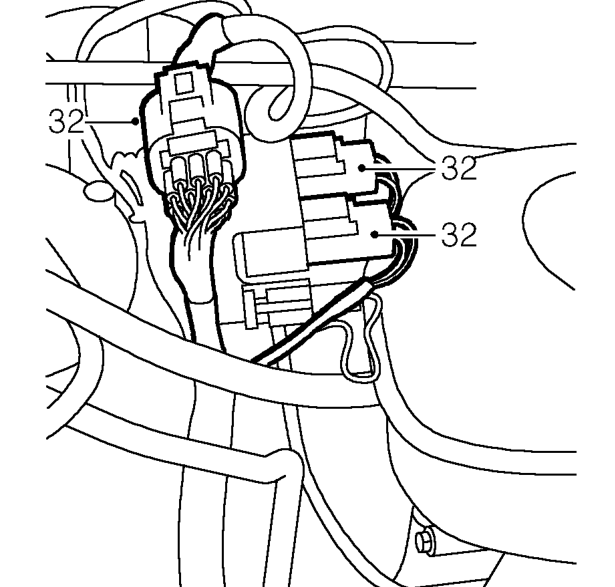

  1. Disconnect 3 engine harness multiplugs from main harness.
Disconnect 3 engine harness multiplugs from main harness.

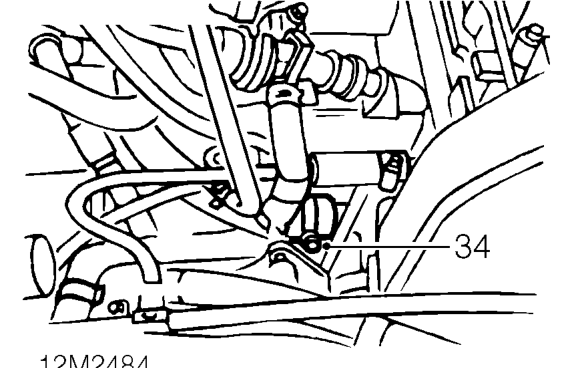

  1. Disconnect inertia switch multiplug and release harness clip from bracket.
Disconnect inertia switch multiplug and release harness clip from bracket.

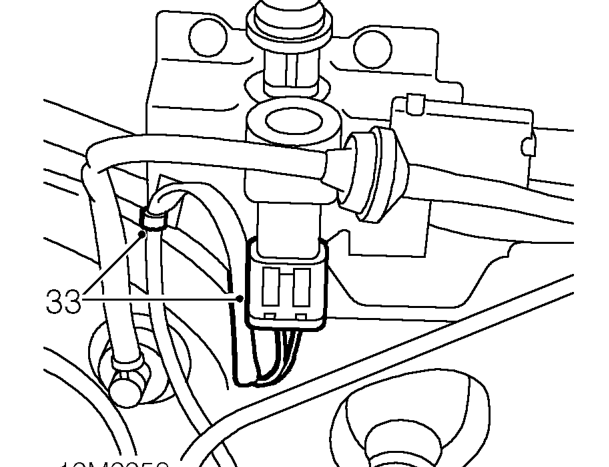

  1. Loosen clip and disconnect hose from coolant rail.

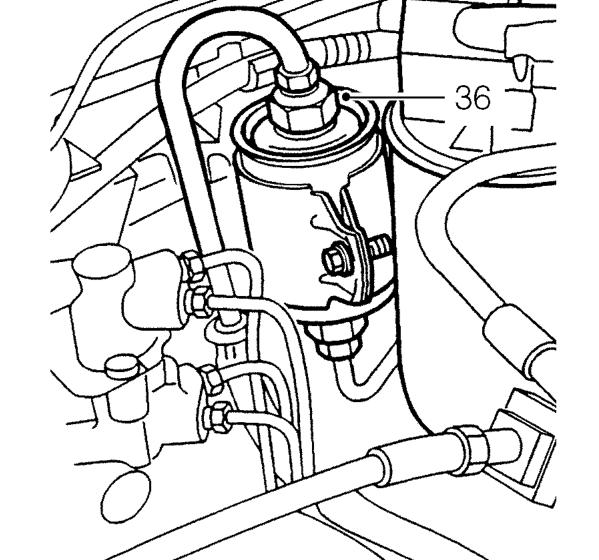

  2. Position absorbent cloth around fuel filter outlet union.
Position absorbent cloth around fuel filter outlet union.
  1. Loosen union to relieve fuel pressure then re-tighten to 28 Nm.

CAUTION: To prevent damage to fuel system pipes or components use two spanners when loosening or tightening unions.

  1. Position an absorbent cloth around fuel rail feed pipe.
