Crankshaft rear oil seal (page 2 of 2)

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Repairs

Engine - D SeriesCrankshaft rear oil seal · page 2 of 2

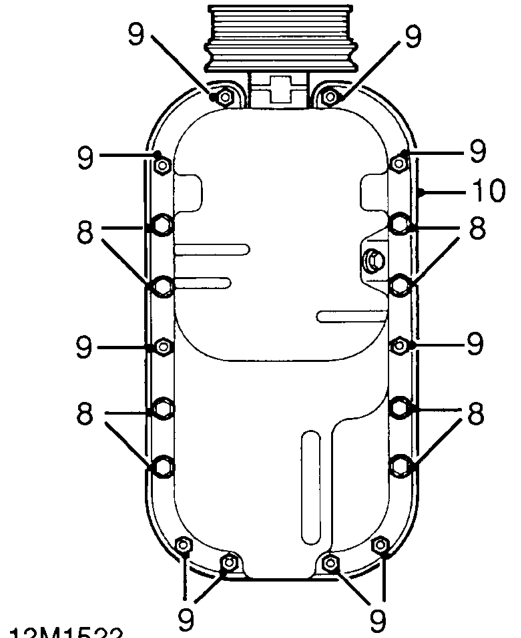

8. Remove 8 bolts securing sump to crankcase
9. Remove 10 nuts securing sump to crankcase.
10. Remove sump and discard gasket.

Refit

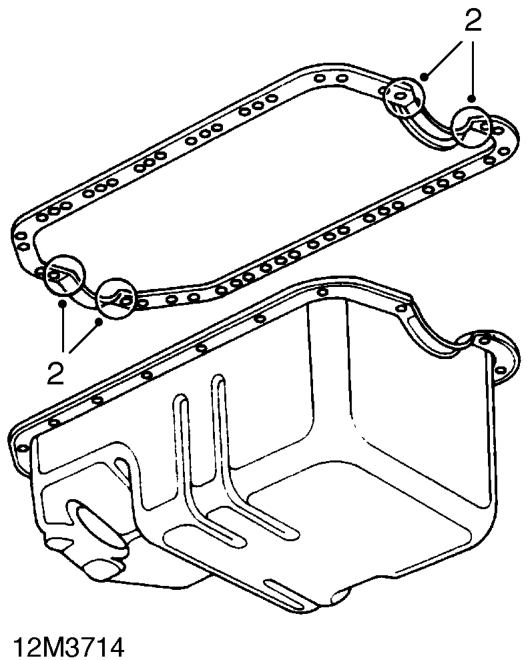

1. Clean sump and crankcase faces.

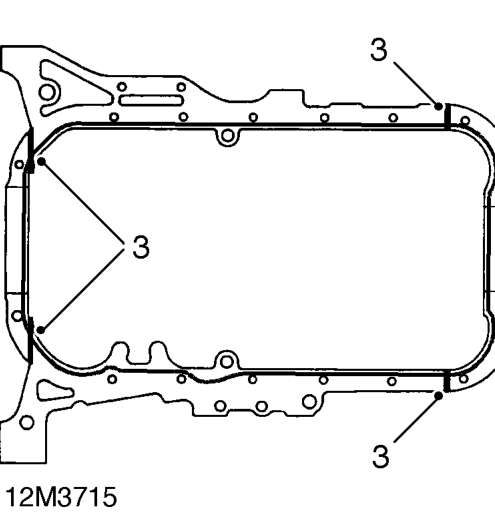

2. Apply liquid sealant to front and rear corners of gasket and fit gasket to sump.

3. Apply sealant along joints between cylinder block and oil pump, cylinder block and right side cover, and around joint face inside of bolt holes.

06 Engine
