Engine and gearbox without air conditioning (page 2 of 10)

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Repairs

Engine - K SeriesEngine and gearbox without air conditioning · page 2 of 10

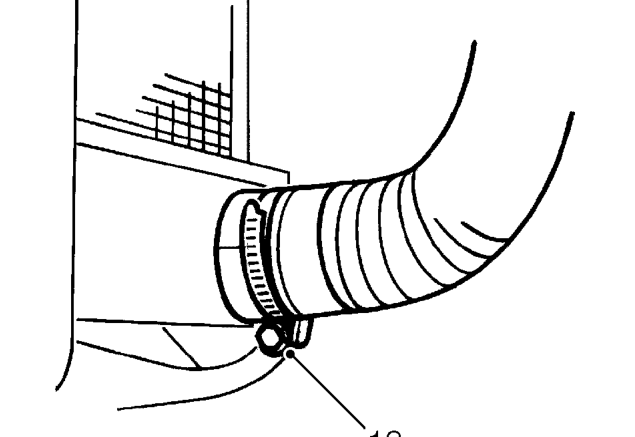

13. Loosen clip and disconnect bottom hose from radiator.
14. Allow cooling system to drain.

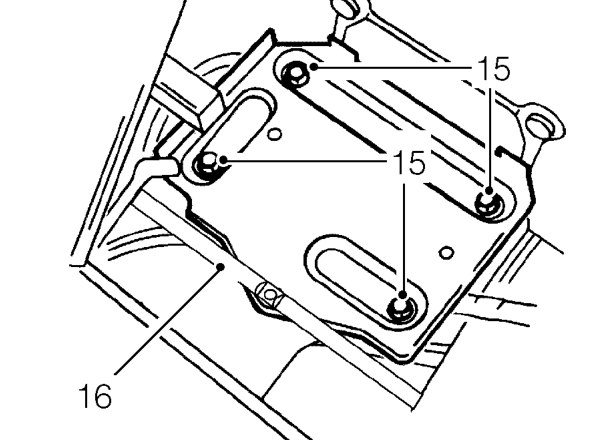

15. Remove 4 bolts securing battery tray to mounting bracket.
16. Remove battery tray.

17. Remove bolt securing air intake hose to battery tray mounting bracket.
18. Remove 2 bolts securing battery tray mounting bracket to body.

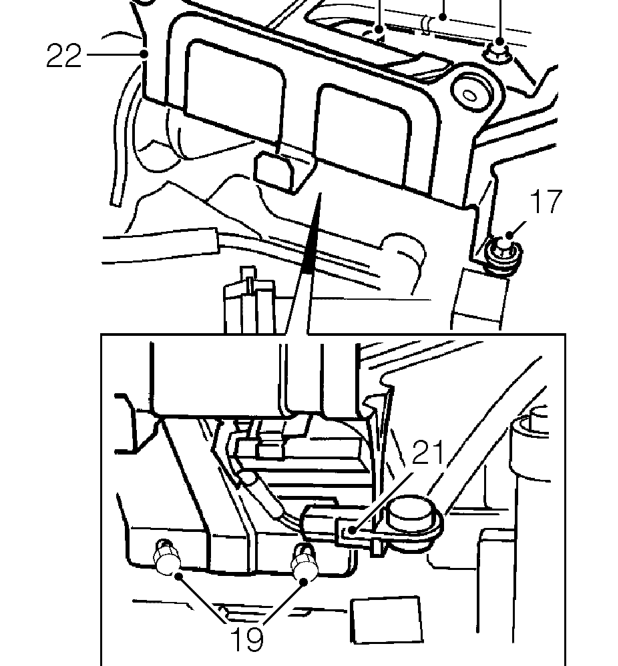

19. Loosen 2 bolts securing battery tray mounting bracket to body.
20. Release clip securing harness to body and position harness aside.
21. If fitted: Disconnect multiplug from dim dip resistor.
22. Remove battery tray mounting bracket.

05 Engine
