Rover 400 Workshop Manual (1995-2000)05 · Engine - K Series
05 · Engine

Engine and gearbox without air conditioning (page 3 of 10)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - K SeriesEngine and gearbox without air conditioning · page 3 of 10
Diagram
  1. Disconnect multiplug from radiator cooling fan.
  2. Loosen clip and disconnect radiator top hose from coolant outlet elbow.
Loosen clip and disconnect radiator top hose from coolant outlet elbow.

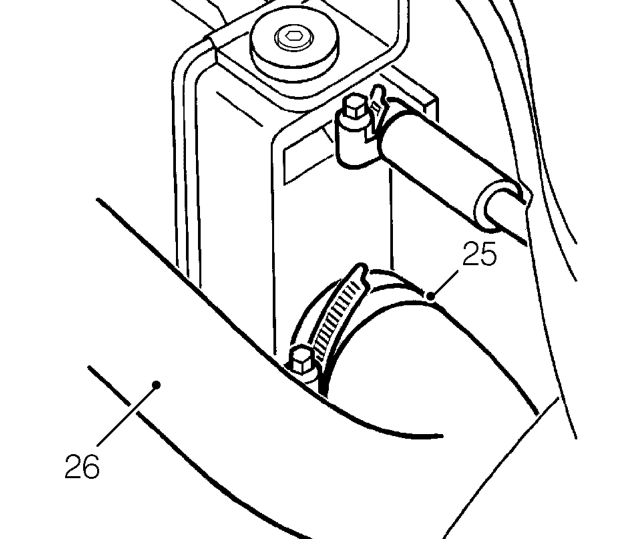

  1. Loosen clip securing top hose to radiator.
  2. Remove radiator top hose.
Remove radiator top hose.

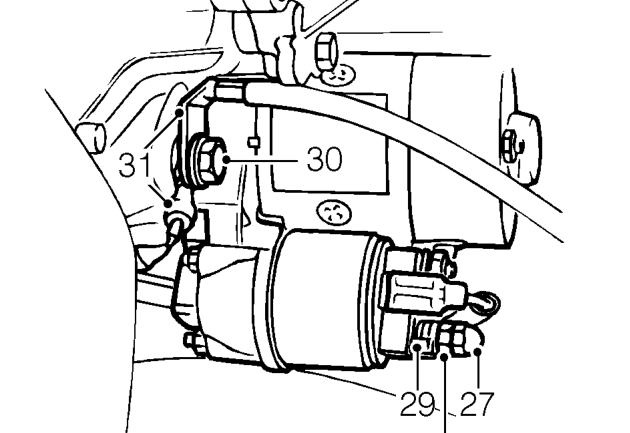

  1. Remove plastic cap from nut securing battery cable to starter solenoid.
  2. Remove nut securing battery cable to starter solenoid.
  3. Disconnect battery cable from starter solenoid.
  4. Remove upper bolt securing starter motor to engine.
  5. Disconnect 2 earth leads from bolt.
Disconnect 2 earth leads from bolt.

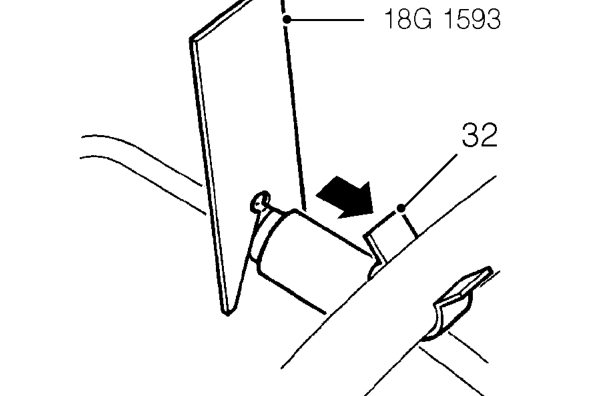

  1. Release clip securing clutch hydraulic pipe to harness.
  2. Using tool 18G 1593 disconnect quick release connector connecting 2 halves of clutch hydraulic pipe.

NOTE: The quick release connector has a valve in each end preventing loss of clutch fluid and removing the need for bleeding the clutch system.
