Rover 400 Workshop Manual (1995-2000)05 · Engine - K Series
05 · Engine

Engine and gearbox without air conditioning (page 5 of 10)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - K SeriesEngine and gearbox without air conditioning · page 5 of 10
Diagram

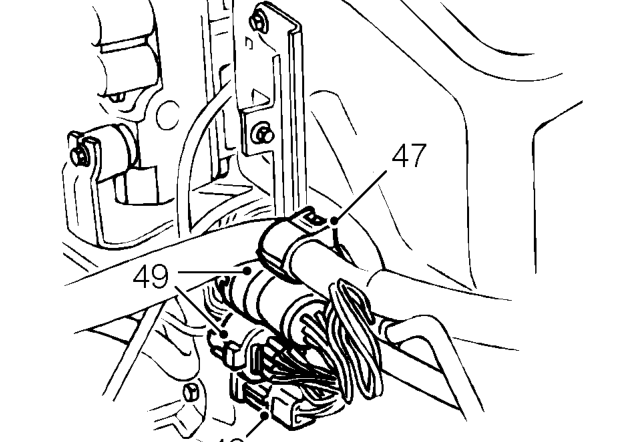

  1. Release clip securing harness to mounting bracket.
  2. Release 3 clips securing multiplugs to mounting bracket.
  3. Disconnect 3 engine harness multiplugs from main harness.
  4. Lay engine harness across engine to avoid harness being caught when the engine is removed.
Lay engine harness across engine to avoid harness being caught when the engine is removed.

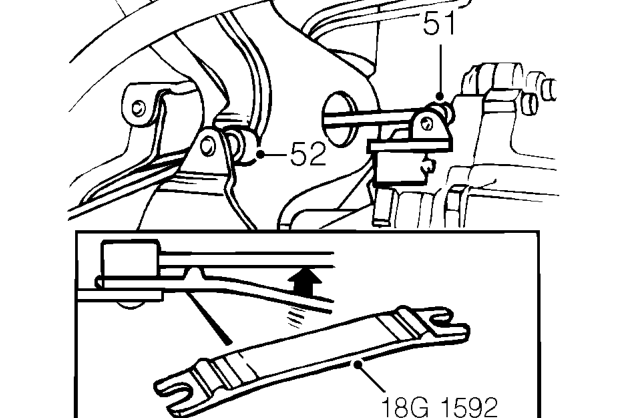

  1. Using tool 18G 1592 release gear selector linkage ball joint from gear selector lever.
  2. Using tool 18G 1592 release gear change linkage ball joint from gear change lever.
Using tool 18G 1592 release gear change linkage ball joint from gear change lever.

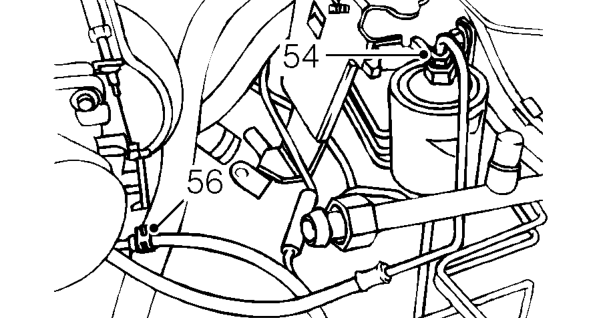

  1. Position absorbent cloth around fuel filter outlet union.
  2. Loosen fuel filter outlet union to relieve fuel pressure.

CAUTION: To prevent damage to fuel system pipes and components use two spanners when loosening or tightening unions.

  1. Disconnect fuel outlet pipe from fuel filter and position aside.
  2. Release clip and disconnect hose from fuel return pipe.
Release clip and disconnect hose from fuel return pipe.

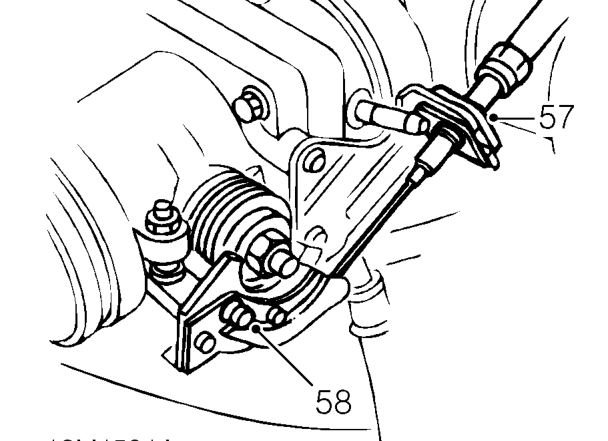

  1. Release throttle cable adjusting nut from abutment bracket.
  2. Release throttle cable from throttle cam.
