Engine and gearbox without air conditioning (page 8 of 10)

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Repairs

Engine - K SeriesEngine and gearbox without air conditioning · page 8 of 10

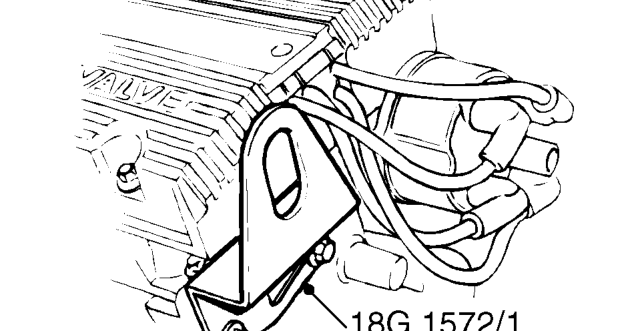

85. Fit engine lifting bracket tool 18G 1572/1 to cylinder head. Fit bolts and tighten to 9 Nm.

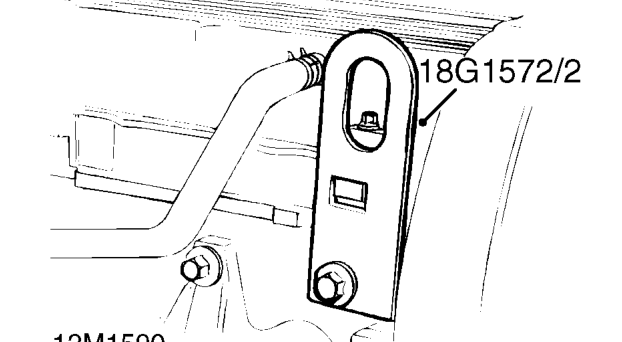

86. Fit engine lifting bracket tool 18G 1572/2 to cylinder head. Fit bolt and tighten to 9 Nm.

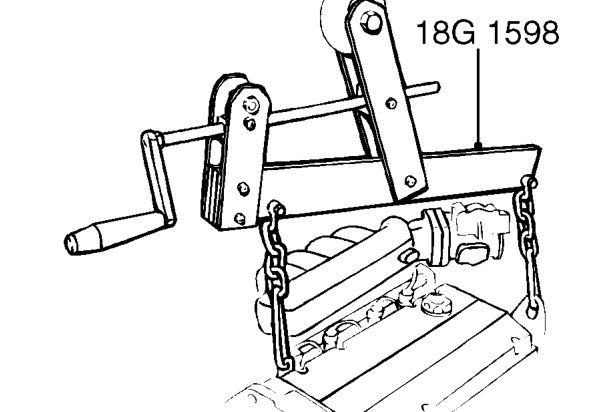

87. Connect adjustable lifting bracket tool 18G 1598 to engine lifting brackets.
88. Connect a hoist to lifting bracket tool 18G 1598 and raise hoist to take weight of engine without exerting load on engine mounting bolts.

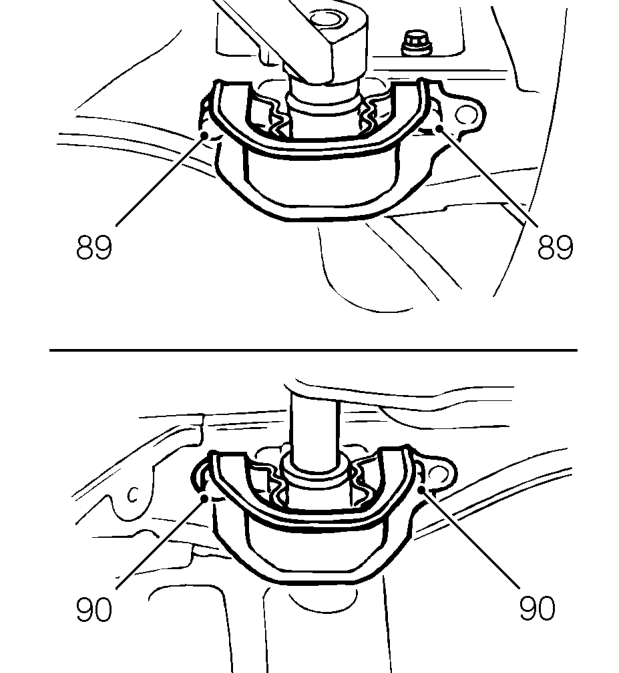

89. Remove 2 bolts securing LH torque mounting to body.
90. Remove 2 bolts securing RH torque mounting to body.

05 Engine
