Rover 400 Workshop Manual (1995-2000)08 · Engine - T Series
08 · Engine

Engine and gearbox - models with air conditioning (page 3 of 8)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - T SeriesEngine and gearbox - models with air conditioning · page 3 of 8
Diagram

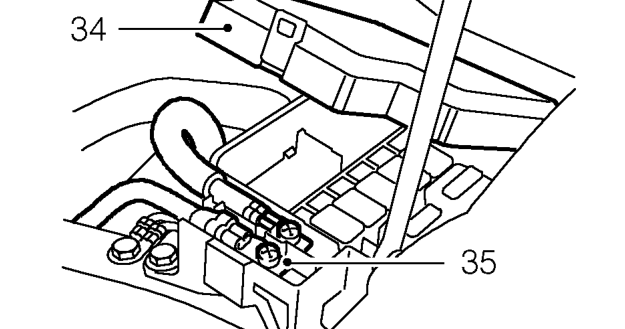

  1. Release clip and remove engine compartment fusebox cover.

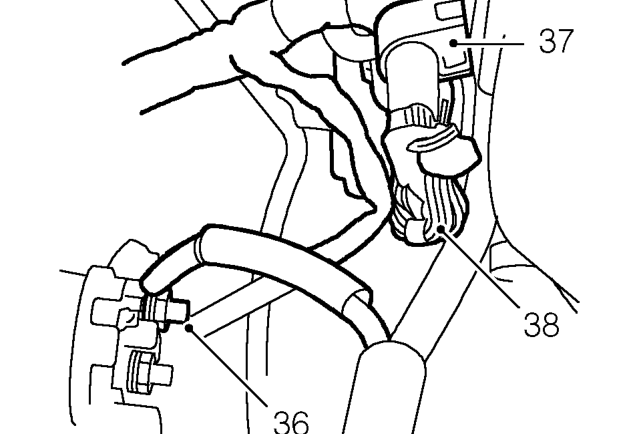

  2. Remove screw securing lead to fusebox.
Remove screw securing lead to fusebox.
  1. Remove nut securing battery lead to starter motor solenoid, release lead and position aside.
  2. Release main harness support clip from body mounting bracket.

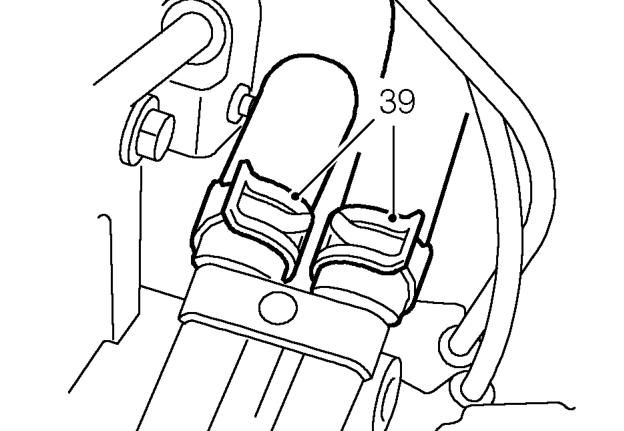

  3. Release 2 main harness to engine harness multiplugs from mounting bracket and disconnect multiplugs.
Release 2 main harness to engine harness multiplugs from mounting bracket and disconnect m
  1. Release 2 clips and disconnect heater hoses from engine coolant rail.
Release 2 clips and disconnect heater hoses from engine coolant rail.

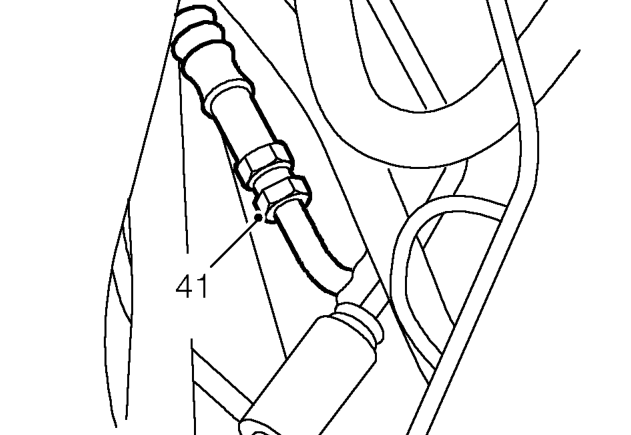

  1. Position container beneath PAS hose union at rear of engine.
  2. Loosen PAS hose union, disconnect union and allow PAS fluid to drain.

CAUTION: To prevent damage to PAS pipes, use 2 spanners when tightening or loosening unions. Plug the connections.
