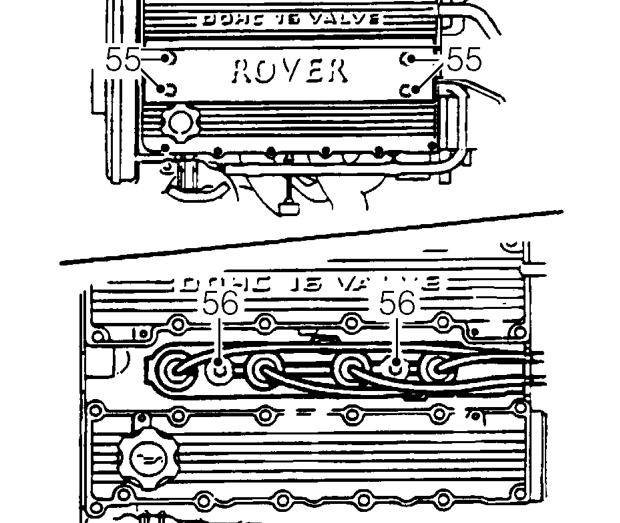

55. Remove 4 screws securing spark plug cover and remove cover.
56. Remove 2 bolts securing h.t. lead clip plate.

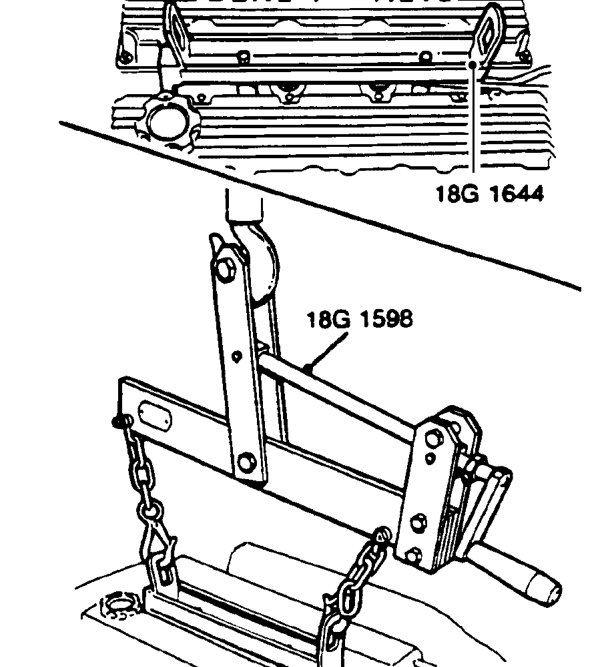

57. Fit engine lifting tool 18G 1644, fit bolts and tighten to 25 Nm.
58. Attach engine lifting tool 18G 1598 to tool 18G 1644 and connect to lifting chain of hoist.
59. Raise hoist to take weight of engine without exerting load on engine mounting bolts.

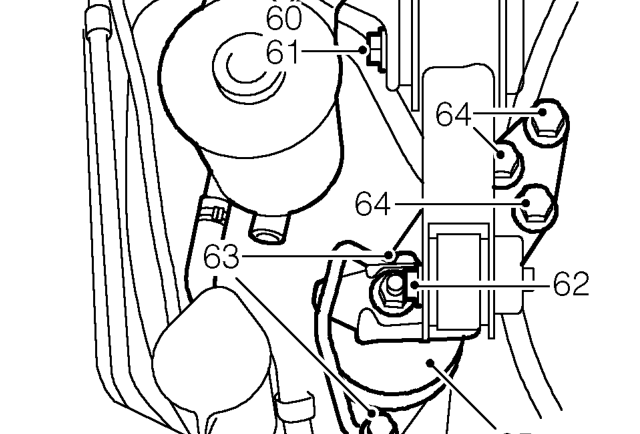

60. Remove 2 bolts securing PAS fluid reservoir mounting bracket to body and position aside.
61. Loosen bolt securing engine mounting tie bar to bracket on body.
62. Remove bolt securing engine mounting tie bar to engine mounting bracket and release tie bar from bracket.
63. Remove 2 bolts securing engine mounting restraint bar to body and remove restraint bar.
64. Remove 3 bolts securing engine mounting to engine.
65. Remove engine RH mounting.
