Rover 600 Repair Manual Supplement (1993-1999)12 · Body
12 · Body & interior

Drive cable (page 2 of 4)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Sunroof
BodyDrive cable · page 2 of 4
Diagram

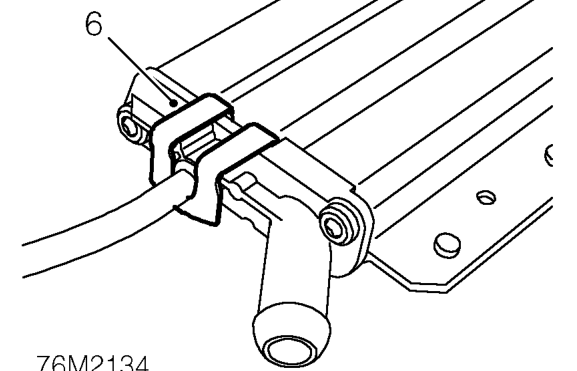

  1. Remove 2 clips securing drive cable tubes to end caps.
Remove 2 clips securing drive cable tubes to end caps.

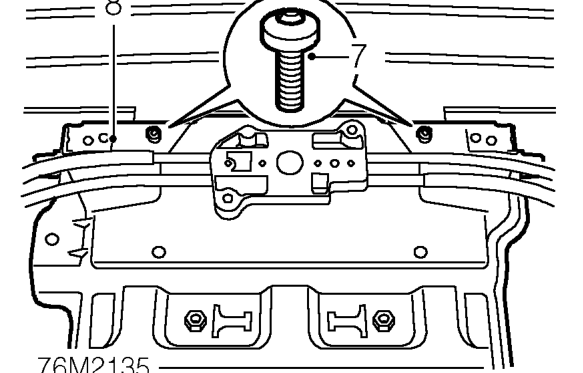

  1. Remove 2 T20 Torx screws securing motor bracket to frame.
  2. Remove bracket and tubes from cables.
Remove bracket and tubes from cables.

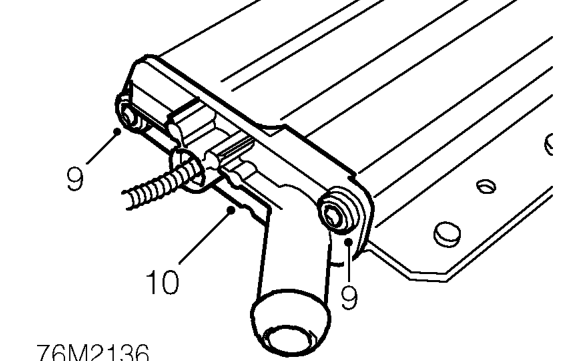

  1. Remove 2 T20 Torx screws securing end cap to frame.
  2. Remove end cap
  3. Remove end cap sealant.
Remove end cap sealant.

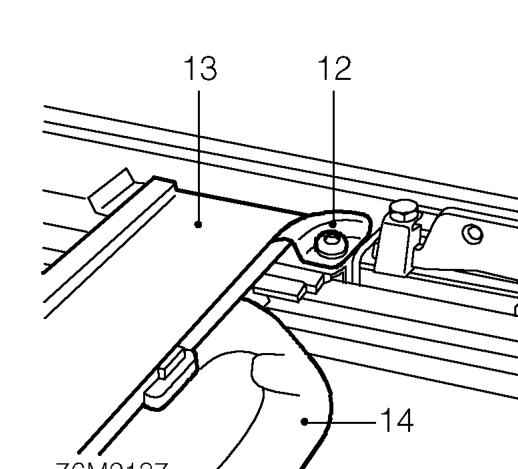

  1. Remove 2 T25 Torx screws securing drain channel to frame.
  2. Remove drain channel.
  3. Slide sunshade forward to remove it from sunroof.
Slide sunshade forward to remove it from sunroof.

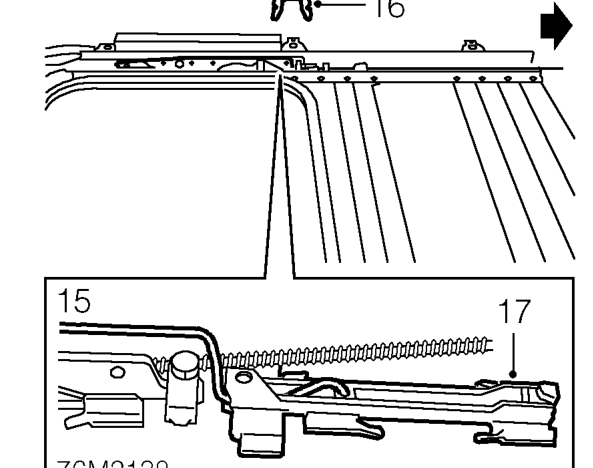

  1. Remove cable and culisse from frame.
  2. Collect spacer.
  3. Remove culisse rear support from spring.
