ALTERNATOR - ’L’ SERIES

Service repair no - 86.10.02

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove auxiliary drive belt. See this section.
  2. Remove engine acoustic cover. See BODY, Exterior fittings.
Warning: support on safety stands. – Remove engine acoustic cover. See BODY, Exterior fittings.

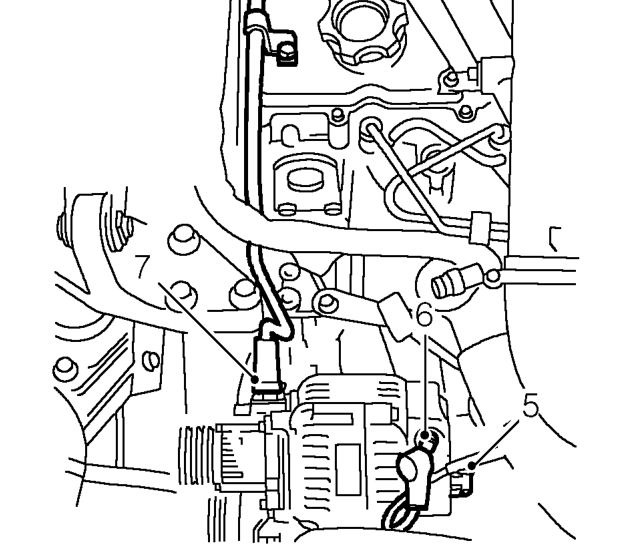

  1. Disconnect multiplug from alternator.
  2. Release cover, remove nut and disconnect battery cable from alternator.
  3. Release clip and disconnect vacuum hose from vacuum pump.
  4. Position cloth to collect oil spillage.
Warning: support on safety stands. – Position cloth to collect oil spillage.

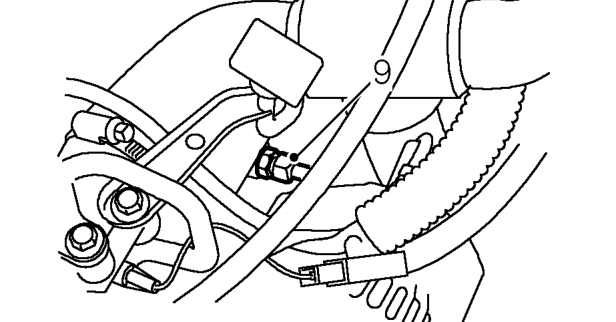

  1. Disconnect vacuum pump oil feed pipe union from cylinder block.
Warning: support on safety stands. – Disconnect vacuum pump oil feed pipe union from cylinder block.

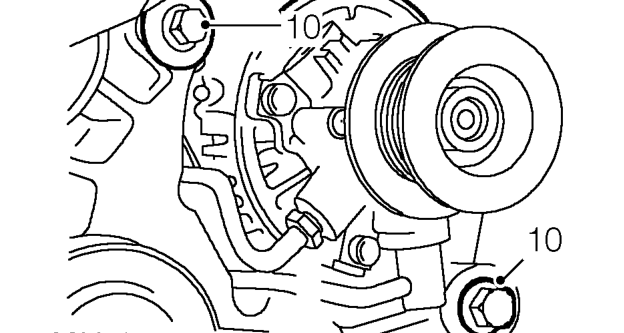

  1. Remove 2 bolts securing alternator to mounting bracket.
