IMMOBILISER CONTROL UNIT

Service repair no - 86.55.96

Remove

  1. Remove dashboard lower cover. See REPAIR MANUAL - Body.

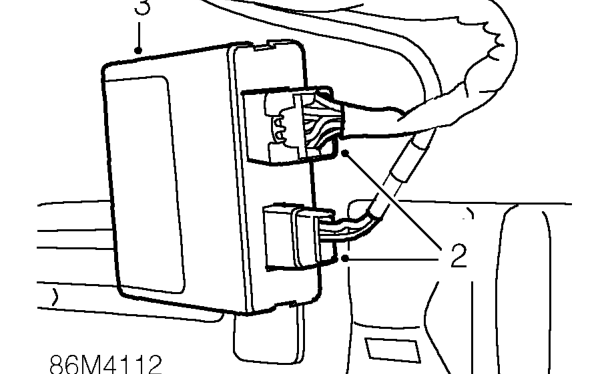

Immobiliser control unit – Remove dashboard lower cover. See REPAIR MANUAL - Body.
  1. Disconnect both multiplugs from immobiliser control unit.
  2. Remove control unit from bracket on dashboard lower rail.

Refit

  1. Fit immobiliser control unit to bracket.
  2. Connect multiplugs to control unit.
  3. Fit dashboard lower cover. See REPAIR MANUAL - Body.

HEADLAMP ADJUSTING SWITCH

Service repair no - 86.65.16

Remove

  1. Remove dashboard lower cover. See REPAIR MANUAL - Body.

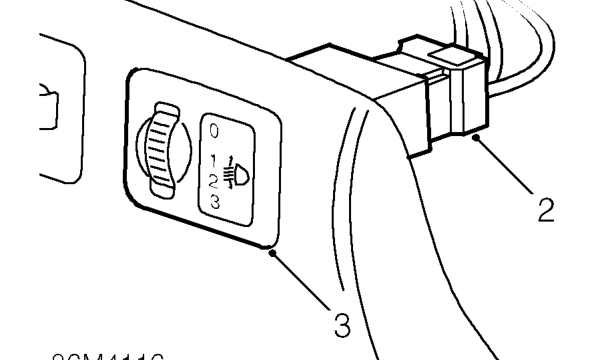

Headlamp adjusting switch – Remove dashboard lower cover. See REPAIR MANUAL - Body.
  1. Disconnect multiplug from switch.
  2. Remove switch from panel.

Refit

  1. Fit switch to panel and connect multiplug.
  2. Fit dashboard lower cover. See REPAIR MANUAL - Body.
