HIGH LEVEL STOP LAMP

Service repair no - 86.46.09

Remove

High level stop lamp – Service repair no - 86.46.09

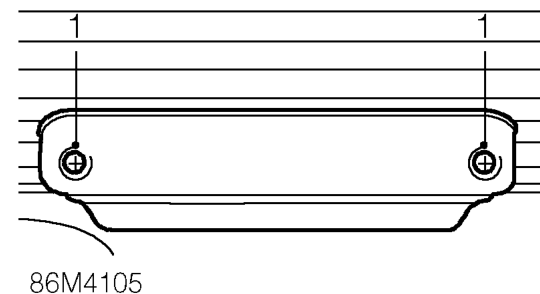

  1. Remove 2 T20 Torx screws and remove lamp cover.
High level stop lamp – Remove 2 T20 Torx screws and remove lamp cover.

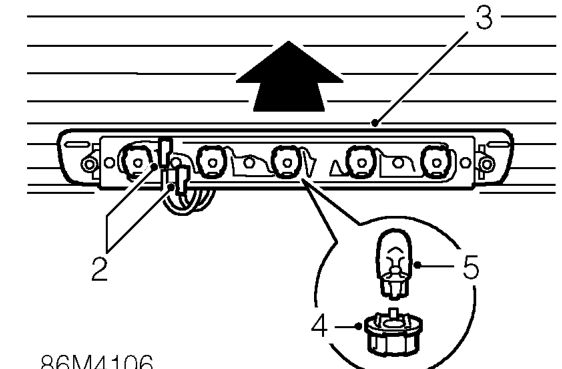

  1. Disconnect Lucars from lamp.
  2. Slide lamp upwards to release it from lugs on rear screen. Do not carry out further dismantling if component is removed for access only.
  3. Remove bulb holders from lamp.
  4. Remove bulbs from holders.

Refit

  1. Fit bulbs to holders.
  2. Fit holders to lamp.
  3. Fit lamp to lugs on rear screen.
  4. Connect Lucars.
  5. Fit cover and secure with screws.

IMMOBILISATION ANTENNA

Service repair no - 86.77.35

Remove

  1. Remove steering column cowl. See REPAIR MANUAL - Steering.
Immobilisation antenna – Remove steering column cowl. See REPAIR MANUAL - Steering.

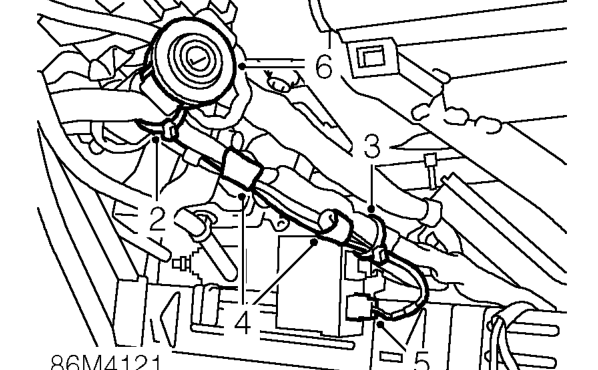

  1. Remove cable tie securing harness to steering column lock barrel.
  2. Remove cable tie holding column harnesses together.
  3. Remove tape holding immobilisation harness together in 2 places.
  4. Disconnect antenna multiplug from immobilisation control unit.
  5. Remove immobilisation antenna from steering column lock.

Refit

  1. Fit immobilisation antenna to steering column lock.
  2. Align harness to lock barrel and fit cable tie.
  3. Connect antenna multiplug to control unit.
  4. Align immobilisation harness and tape together in 2 places.
  5. Fit cable ties to hold harness.
  6. Fit steering column cowl. See REPAIR MANUAL - steering.
