Receiver drier - system depressurised

RECEIVER DRIER - SYSTEM DEPRESSURISED

Service repair no - 82.17.03/02

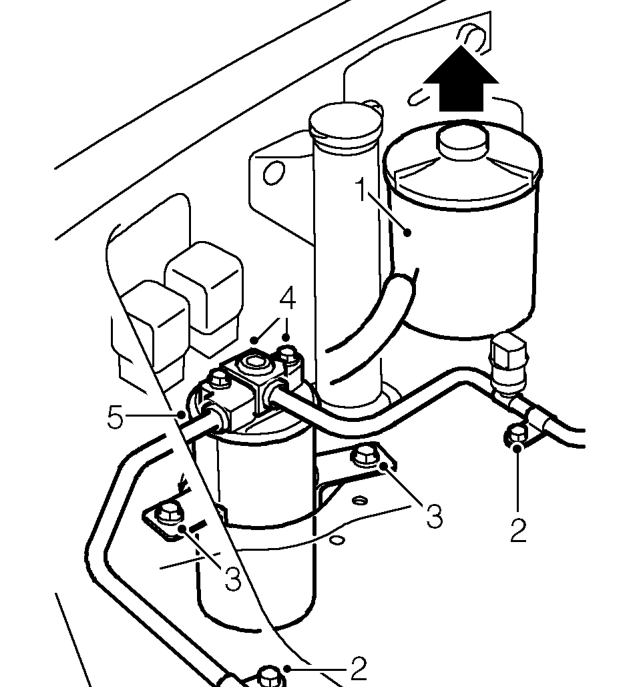

Remove

1. Release power steering reservoir from its mounting bracket.
2. Remove 2 bolts securing air conditioning pipe clips to body.
3. Remove 2 bolts securing receiver drier.
4. Remove 2 bolts securing air conditioning pipes to receiver drier.
5. Position pipes aside and remove receiver drier.
6. Remove and discard 2 ’O’ rings from pipes.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

7. Loosen clamp screw and remove bracket from receiver drier.

Refit

1. Clean air conditioning pipe connections.
2. Lubricate new ’O’ rings with refrigerant oil and fit to air conditioning pipes.
3. Remove caps from new receiver drier and fit to old unit.
4. Fit receiver drier to bracket and secure bracket clamp bolt.
5. Fit receiver drier and tighten bolts.
6. Engage air conditioning pipes to receiver drier and tighten retaining bolts to 5 Nm
7. Fit and tighten bolts securing air conditioning pipe clips.
8. Secure power steering reservoir to mounting bracket.
