Air conditioningCondenser fan motor - diesel

CONDENSER FAN MOTOR - DIESEL

Service repair no - 82.15.01

Remove

  1. Remove radiator cooling fan. See COOLING SYSTEM - DIESEL, Repairs.

CONDENSER FAN MOTOR - KV6

Service repair no - 82.15.01

Remove

  1. Remove cooling fan and motor. See COOLING SYSTEM - ’KV6’, Repairs.

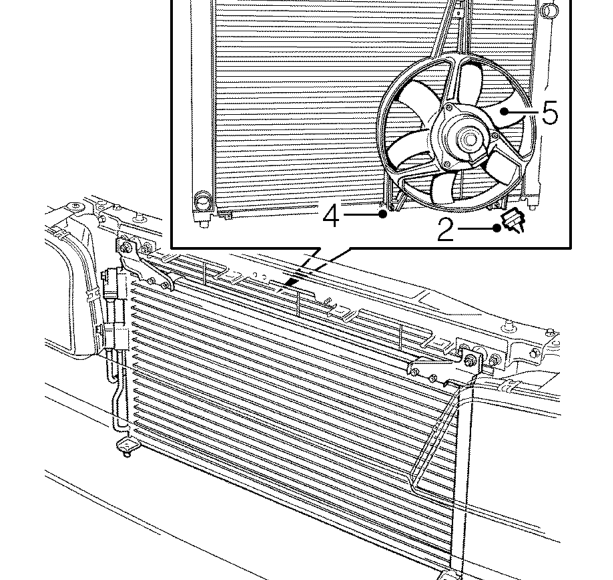

Condenser fan motor - kv6 – Remove cooling fan and motor. See COOLING SYSTEM - ’KV6’, Repairs.
  1. Disconnect multiplug from condenser cooling fan.
  2. Remove nut securing top of cooling fan housing to radiator.
  3. Remove 2 nuts securing bottom of cooling fan housing to radiator.
  4. Release cooling fan housing from studs on radiator and remove from vehicle.

Refit

  1. Position cooling fan housing and secure on radiator studs. Fit and tighten nuts to 6 Nm.
  2. Connect multiplug to condenser cooling fan.
  3. Fit cooling fan and motor. See COOLING SYSTEM - ’KV6’, Repairs.
