Rover 800 Workshop Manual (1996-1999)23 · Air conditioning
23 · Heating & A/C

Evaporator

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Evaporator
Air conditioningEvaporator · page 1 of 2

EVAPORATOR

Service repair no - 82.25.20

Remove

  1. Recover refrigerant from air conditioning system. See Adjustments.

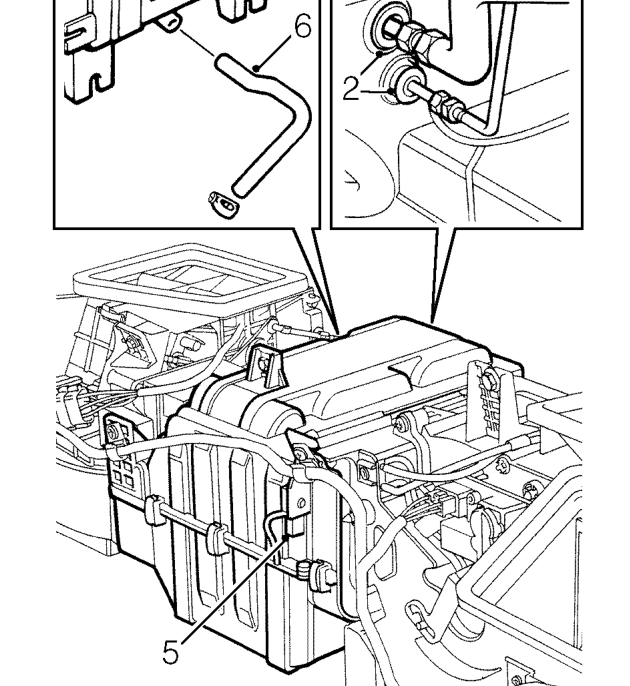

Evaporator – Recover refrigerant from air conditioning system. See Adjustments.
  1. Disconnect evaporator pipe unions.

CAUTION: Use backing spanner.

  1. Remove and discard 2 ’O’ rings.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.

  1. Remove fascia assembly. See BODY, Repairs.
  2. Disconnect thermistor multiplug.
  3. Release drain tube from evaporator.

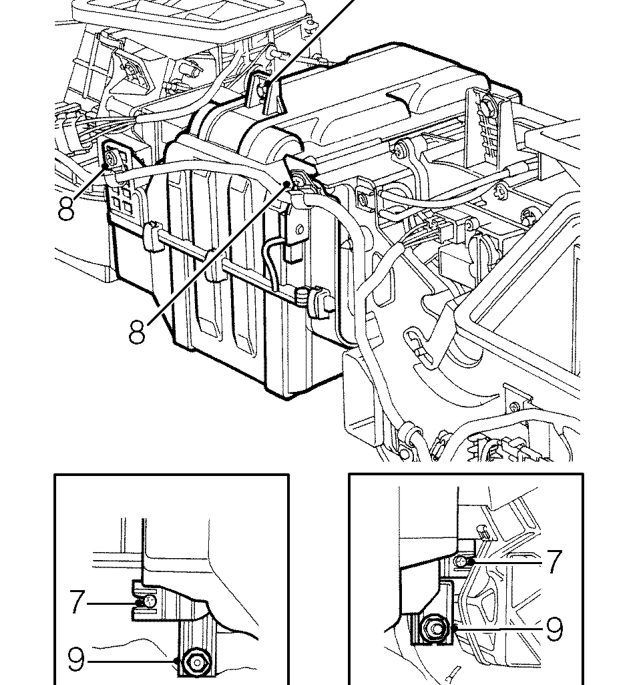

Evaporator – Release drain tube from evaporator.
  1. Remove 2 screws securing rear of evaporator to casings.
  2. Remove 2 screws securing evaporator to casings and release harness clips
  3. Remove 2 nuts and large washers securing evaporator to body.
  4. Remove bolt securing evaporator to body bracket.
  5. Remove evaporator assembly.
