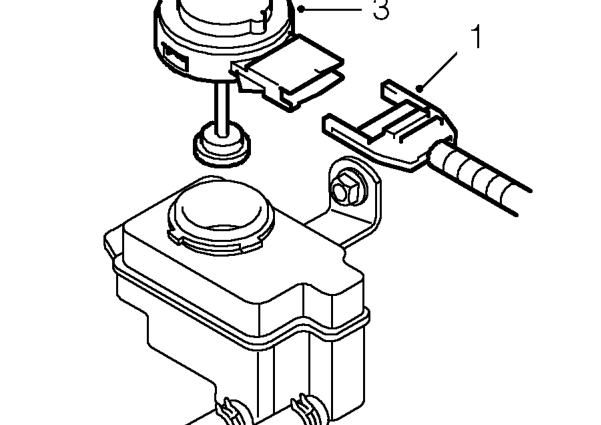

Fluid level switch

FLUID LEVEL SWITCH

Service repair no - 70.25.08

Remove

1. Disconnect switch multiplug
2. Clean area around reservoir cap.
3. Remove quick release cap/switch assembly.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

Refit

1. Check and top-up fluid level. See INFORMATION, Capacities, fluids and lubricants.
2. Fit cap/switch assembly.
3. Connect switch multiplug, ensure multiplug is at right angles to reservoir.

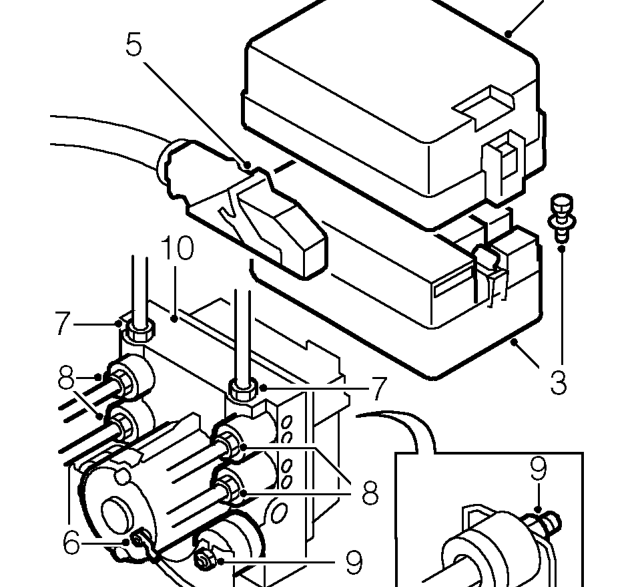

ABS5 HYDRAULIC MODULATOR

Service repair no - 70.25.12

Remove

1. Disconnect battery earth lead.

2. Remove fusebox cover.
3. Remove 2 screws and position fusebox aside.
4. Position cloth under modulator to absorb fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

5. Raise clip, lift front of multiplug and disengage from modulator ECU.
6. Remove nut securing earth lead to motor and disconnect lead.
7. Disconnect 2 inlet brake pipe unions from top of modulator.

CAUTION: Plug the connections.

8. Disconnect 4 outlet brake pipe unions from modulator.
