Servo assembly - KV6

SERVO ASSEMBLY - KV6

Service repair no - 70.50.01

RHD only:

Remove

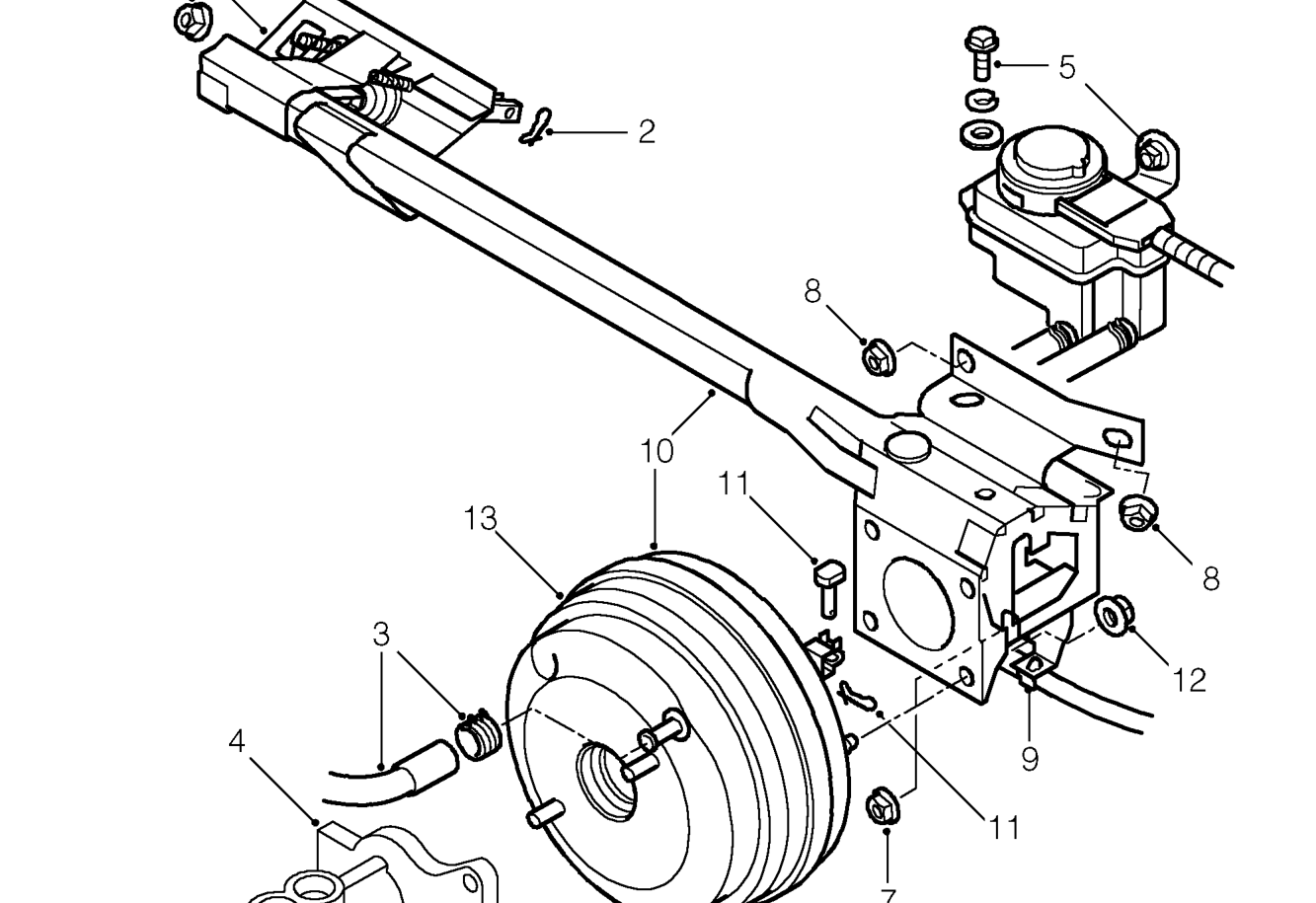

1. Release 4 turnbuckles and remove closing panel from below steering column.
2. Withdraw ’R’ clip and remove clevis pin from remote linkage rod fork and brake pedal.
3. Release clip and disconnect vacuum hose from servo.
4. Remove brake master cylinder. See this section.
5. Remove 2 screws securing brake master cylinder reservoir to body and remote linkage frame, position reservoir aside.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

6. Remove 4 flange nuts securing remote linkage bracket to body.
7. Remove flange nut, below servo push rod, securing remote linkage bracket to body; use 15 mm socket and extension.
8. Remove 2 nuts securing remote linkage bracket to body.
9. Release brake pipe from clip under bracket.
10. Free brackets from studs and remove remote linkage and servo assembly.
11. Remove ’R’ clip and clevis pin securing servo push-rod to remote linkage.
12. Remove 4 nuts securing servo to remote linkage bracket.
13. Remove servo assembly.
