Drive shaftsDrive shaft dynamic damper - KV6

DRIVE SHAFT DYNAMIC DAMPER - KV6

Service repair no - 47.10.33

  1. Remove drive shaft outer joint. See this section.

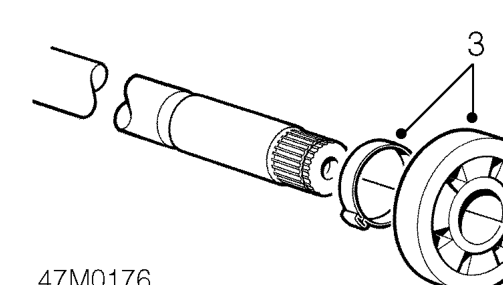

  2. Clean drive shaft with emery cloth to remove rust and lubricate shaft to aid removal of damper.
Drive shaft dynamic damper - kv6 – Clean drive shaft with emery cloth to remove rust and lubricate shaft to aid removal of da
  1. Remove clip and remove damper.

Refit

  1. Lubricate shaft and fit new damper. Fit new damper securing clip.

NOTE: Dampers for LH and RH shafts are not interchangeable.

  1. Fit drive shaft outer joint. See this section.

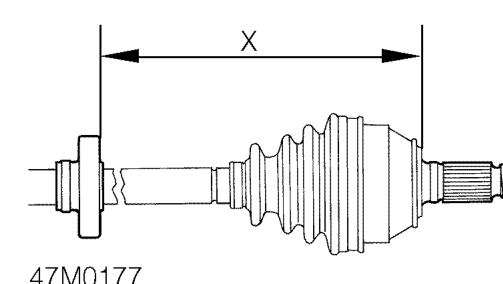

  2. Measure and mark drive shaft for damper position.
Drive shaft dynamic damper - kv6 – Measure and mark drive shaft for damper position.

Damper position, Manual and Automatic models: RH shaft X = 402 - 408 mm LH shaft X = 270 - 276 mm

  1. Secure damper clip.
  2. Fit drive shaft. See this section.
