Workshop Manuals Factory service & repair Rover
Rover 800 Workshop Manual (1996-1999)18 · Drive shafts
18 · Transmission

LH drive shaft dynamic damper - diesel

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › LH drive shaft dynamic damper - diesel
Drive shaftsLH drive shaft dynamic damper - diesel

LH DRIVE SHAFT DYNAMIC DAMPER - DIESEL

Service repair no - 47.10.33

  1. Remove LH drive shaft outer joint. See this section.

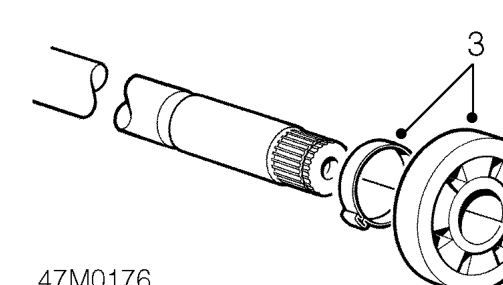

  2. Clean drive shaft with emery cloth to remove rust and lubricate shaft to aid removal of damper.
Lh drive shaft dynamic damper - diesel – Clean drive shaft with emery cloth to remove rust and lubricate shaft to aid removal of da
  1. Remove clip and remove damper.

Refit

  1. Lubricate shaft and fit new damper. Fit new damper securing clip.

NOTE: Dampers for LH and RH shafts are not interchangeable.

  1. Fit drive shaft outer joint. See this section.

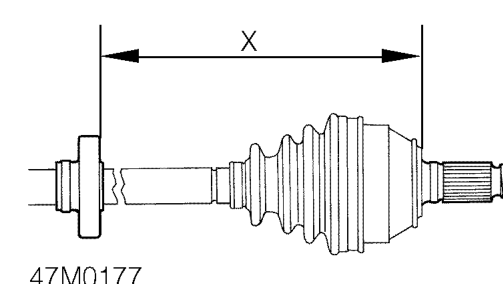

  2. Measure and mark drive shaft for damper position.
Lh drive shaft dynamic damper - diesel – Measure and mark drive shaft for damper position.

Damper position X= 233 - 239 mm

  1. Secure damper clip.
  2. Fit drive shaft. See this section.
