RH DRIVE SHAFT - DIESEL

Service repair no - 47.10.02

Remove

  1. Raise front of vehicle, one side.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Rh drive shaft - diesel – Remove road wheel(s).

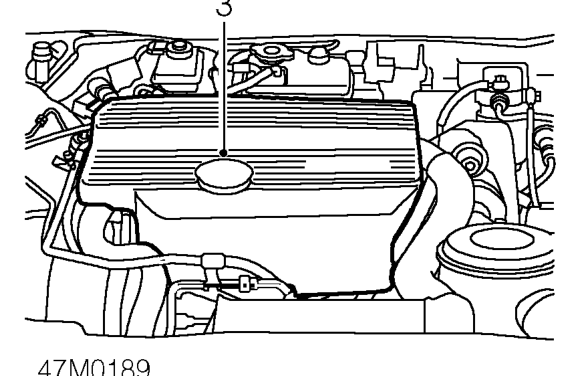

  1. Remove engine acoustic cover.
  2. Disconnect battery earth lead.
Rh drive shaft - diesel – Disconnect battery earth lead.

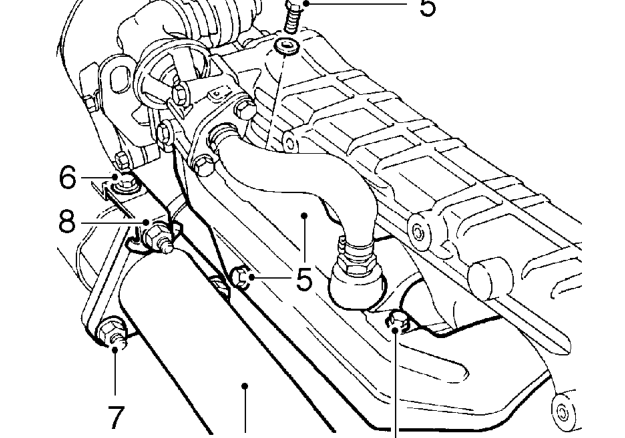

  1. Remove 3 bolts securing exhaust manifold heat shield and move heat shield aside.
  2. Remove bolt securing turbocharger heat shield to bracket.
  3. Remove 3 nuts securing exhaust front pipe flange to turbocharger outlet elbow.
  4. Remove turbocharger heat shield bracket.
  5. Release front pipe flange from turbocharger outlet elbow.
  6. Remove and discard gasket.
  7. Position container beneath differential.
  8. Remove speed sensor. See MANUAL GEARBOX - ’T750’, Repairs.
  9. Knock back drive shaft nut stake.
