Rover 800 Workshop Manual (1996-1999)18 · Drive shafts
18 · Transmission

RH drive shaft - diesel (page 2 of 2)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Drive shaftsRH drive shaft - diesel · page 2 of 2
Diagram

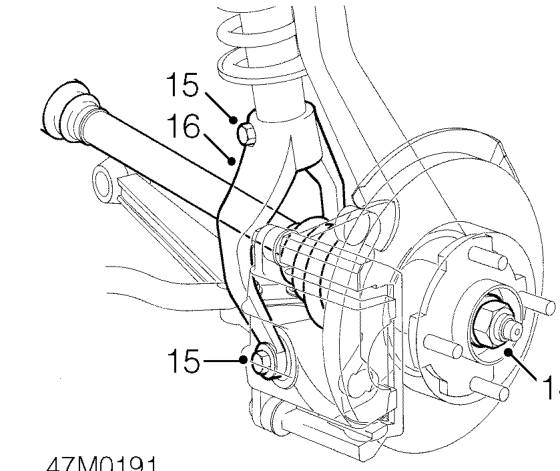

  1. With an assistant depressing brake pedal remove and discard drive shaft nut.
  2. Remove nut and bolt securing yoke to lower arm and nut and bolt securing yoke to to damper.
  3. Release and remove yoke.
Release and remove yoke.

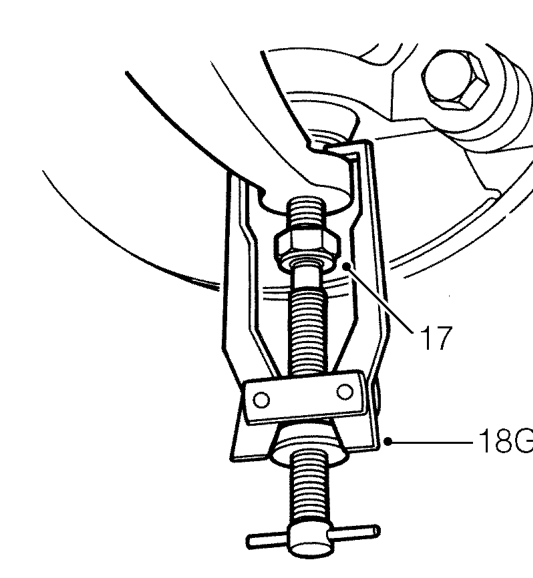

  1. Remove nut from lower ball joint.
  2. Break taper joint using tool 18G 2 and release knuckle from lower arm.

CAUTION: Do not damage ball joint boot.

Break taper joint using tool 18G 2 and release knuckle from lower arm.

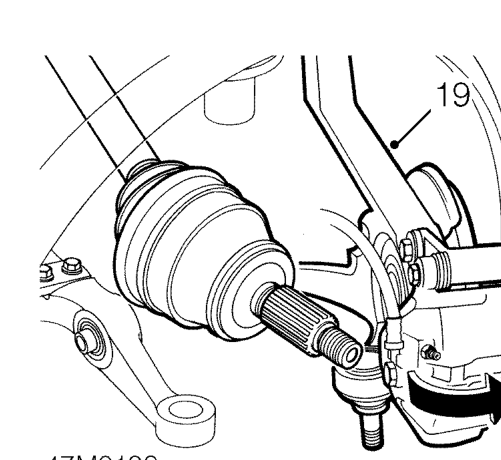

  1. Pull knuckle outwards and release drive shaft from hub.
Pull knuckle outwards and release drive shaft from hub.
  1. Release drive shaft from differential.
  2. Remove drive shaft assembly.

CAUTION: Keep drive shaft horizontal to avoid damaging differential oil seal.
