GEARBOX ASSEMBLY

Service repair no - 37.20.02/99

Remove

  1. Support vehicle on a suitable lift in a wheel free position.
  2. Disconnect battery earth lead.
  3. Remove radiator cooling fan assembly. See COOLING SYSTEM - DIESEL, Repairs.
Gearbox assembly – Remove radiator cooling fan assembly. See COOLING SYSTEM - DIESEL, Repairs.

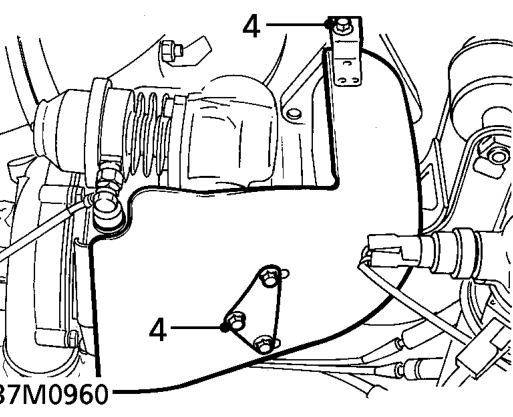

  1. Remove 4 bolts securing turbocharger heat shield. Remove heat shield.
Gearbox assembly – Remove 4 bolts securing turbocharger heat shield. Remove heat shield.

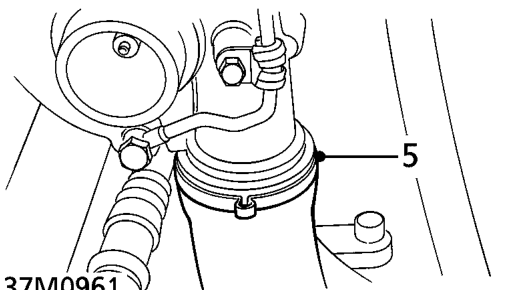

  1. Loosen clip on turbocharger outlet hose and remove hose.
Gearbox assembly – Loosen clip on turbocharger outlet hose and remove hose.

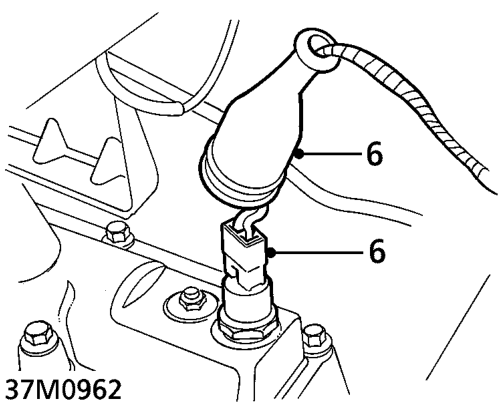

  1. Release cover from reverse light switch and disconnect multiplug
Gearbox assembly – Release cover from reverse light switch and disconnect multiplug

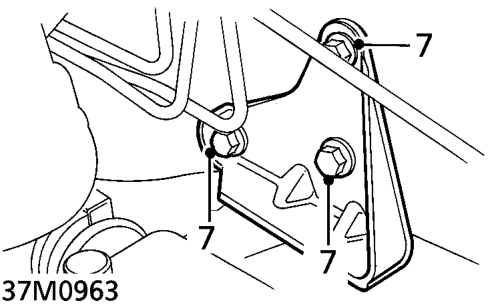

  1. Remove 3 bolts securing bump rubber to LH body longitudinal member and remove bump rubber.
Gearbox assembly – Remove 3 bolts securing bump rubber to LH body longitudinal member and remove bump rubber.

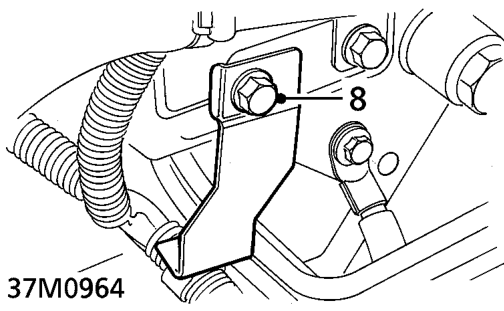

  1. Remove bolt securing harness bracket to engine backplate.
