Rover 800 Workshop Manual (1996-1999)16 · Manual gearbox - T750
16 · Transmission

Gearbox assembly (page 2 of 7)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Manual gearbox - T750Gearbox assembly · page 2 of 7
Diagram

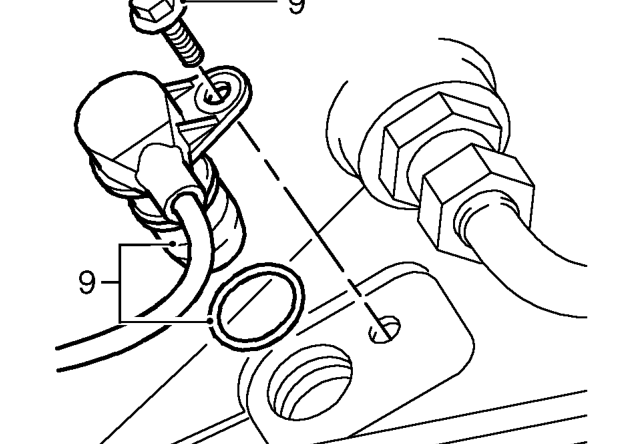

  1. Remove bolt securing crankshaft sensor to gearbox and release sensor.
  2. Position cloth to absorb fuel spillage.
Position cloth to absorb fuel spillage.

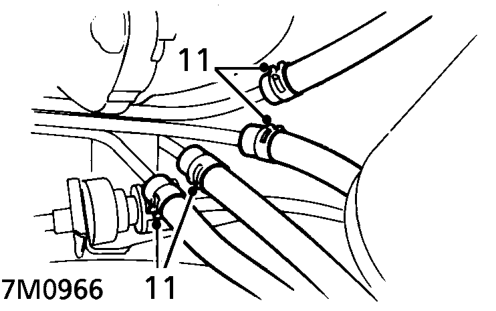

  1. Release 4 clips securing fuel hoses to feed and return pipes. Disconnect hoses.

CAUTION: Plug the connections.

Release 4 clips securing fuel hoses to feed and return pipes. Disconnect hoses.

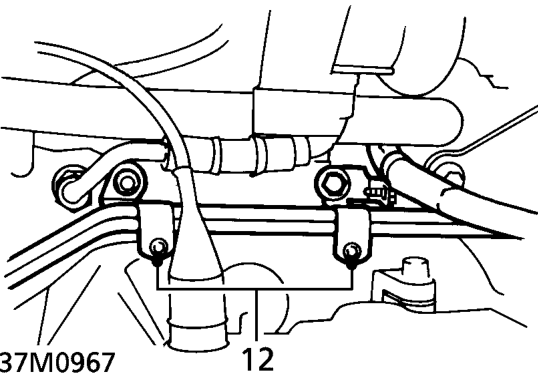

  1. Remove 2 bolts securing fuel pipe clamps and move pipes aside.
  2. Carefully release gear selector inner cables from selector levers.
Carefully release gear selector inner cables from selector levers.

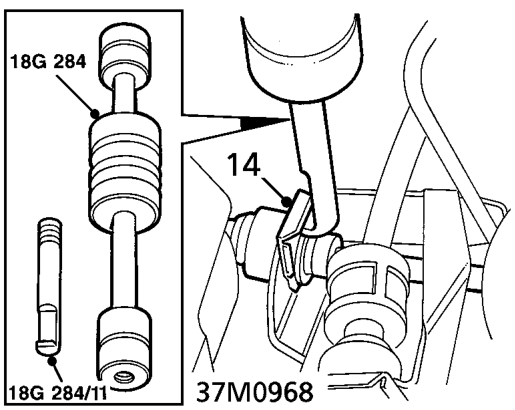

  1. Fit 18G 284-11 to 18G 284 and remove 2 clips securing gear selector outer cables to bracket.
  2. Withdraw cables from mounting bracket.

CAUTION: Do not subject inner and outer cables to excessive bending.
