Manual gearbox - T750Gearbox assembly · page 4 of 7
Diagram

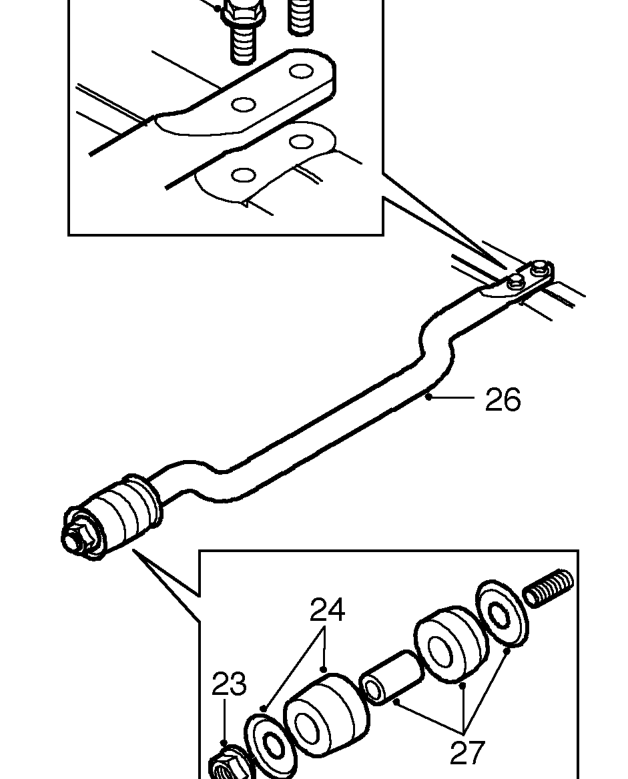

  1. Remove nut securing LH tie rod to front crossmember.
  2. Remove dished washer and bush.
  3. Remove 2 bolts securing LH tie rod to lower arm.
  4. Remove tie rod.
  5. Remove spacer, bush and dished washer from tie rod.
Remove spacer, bush and dished washer from tie rod.

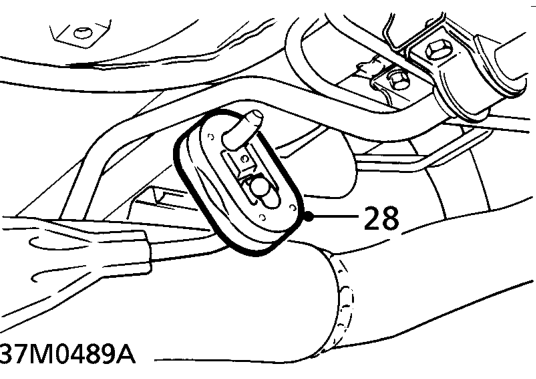

  1. Release exhaust front pipe from mounting rubber.
Release exhaust front pipe from mounting rubber.

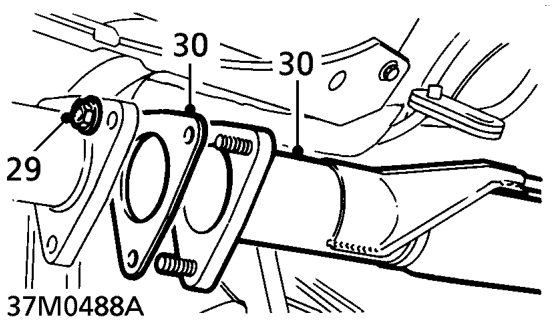

  1. Remove 3 nuts securing front pipe to intermediate pipe.
  2. Remove front pipe and discard gasket.
  3. Position container to collect oil spillage.
Position container to collect oil spillage.

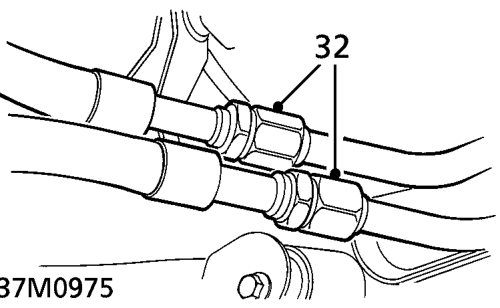

  1. Disconnect 2 oil cooler hoses from pipe unions, remove and discard 2 ’O’ rings.

CAUTION: Plug the connections.
