Rover 800 Workshop Manual (1996-1999)16 · Manual gearbox - T750
16 · Transmission

Gearbox assembly (page 6 of 7)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Manual gearbox - T750Gearbox assembly · page 6 of 7
Diagram

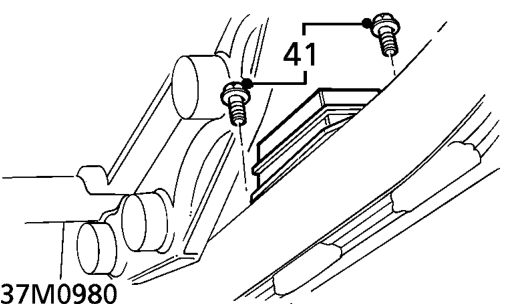

  1. Remove 2 bolts securing bump rubber to centre beam and remove bump rubber.
Remove 2 bolts securing bump rubber to centre beam and remove bump rubber.

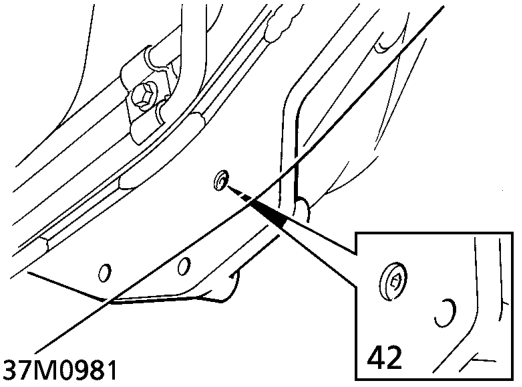

  1. Remove Allen screw securing gearbox to engine back plate.
Remove Allen screw securing gearbox to engine back plate.

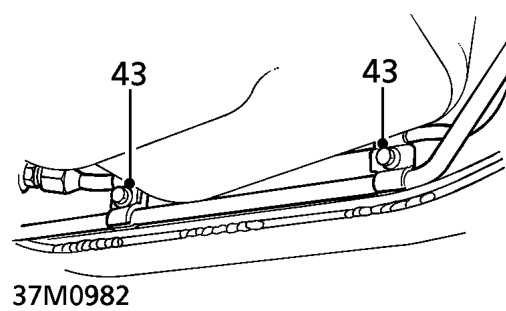

  1. Remove bolts securing PAS pipe clips to centre beam.
  2. Position transmission jack under differential.
Position transmission jack under differential.
  1. Remove rear engine mounting bottom nut.
Remove rear engine mounting bottom nut.

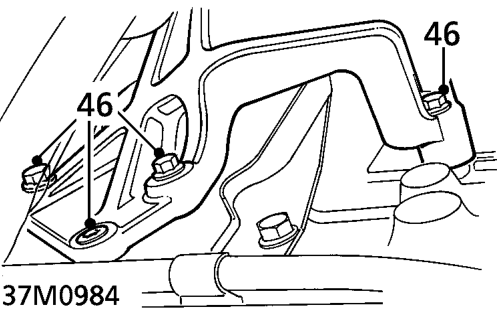

  1. Remove 3 bolts and ’Torx’ screw securing rear mounting bracket to engine.
  2. Remove mounting from bracket.
  3. Remove mounting bracket.
  4. Lower engine and gearbox until sump reinforcing plate rests on crossmember.

NOTE: Move engine and gearbox towards front of car during above operation to give clearance between housing and cross-member.

  1. Reposition jack under gearbox.
