Gearbox assembly (page 5 of 7)

Make

Rover

Model

800 Workshop Manual

Year

1996–1999

Section

Repairs

Manual gearbox - T750Gearbox assembly · page 5 of 7

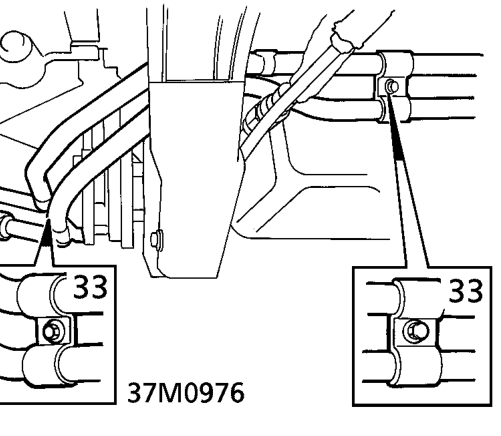

33. Remove 2 screws securing oil cooler pipe clamps to engine, lower steady bar and starter support brackets. Remove clamps.

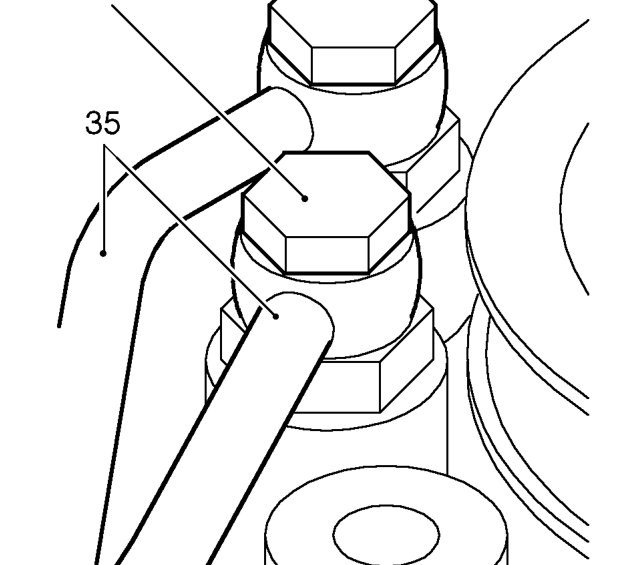

34. Remove oil cooler pipe unions bolts from filter head and discard sealing washers.
35. Remove oil cooler pipes.

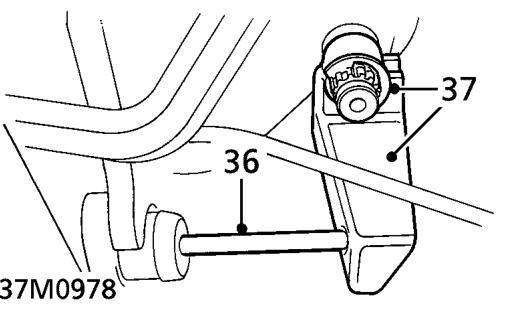

36. Remove clutch lever push rod.
37. Remove ’C’ clip securing clutch release lever and remove lever from gearbox.

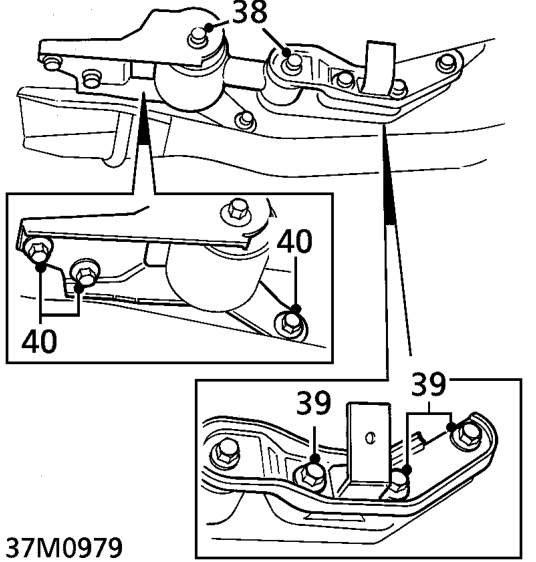

38. Slacken engine 2 front steady bar bolts.
39. Remove bolts securing steady bar bracket to engine backplate and release steady bar bracket from backplate.
40. Remove bolts securing steady bar bracket to centre beam and cross-member. Remove steady bar bracket assembly.

16 Transmission
