Rover 800 Workshop Manual (1996-1999)16 · Manual gearbox - T750
16 · Transmission

Gearbox assembly (page 3 of 7)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Manual gearbox - T750Gearbox assembly · page 3 of 7

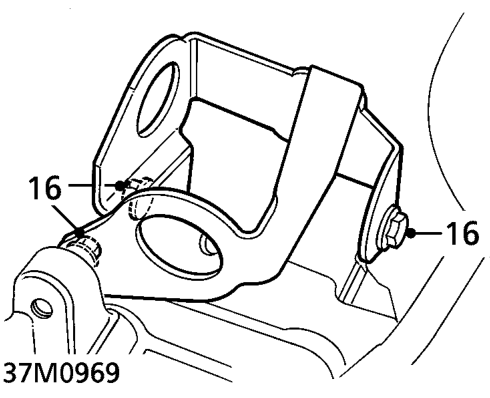

Diagram

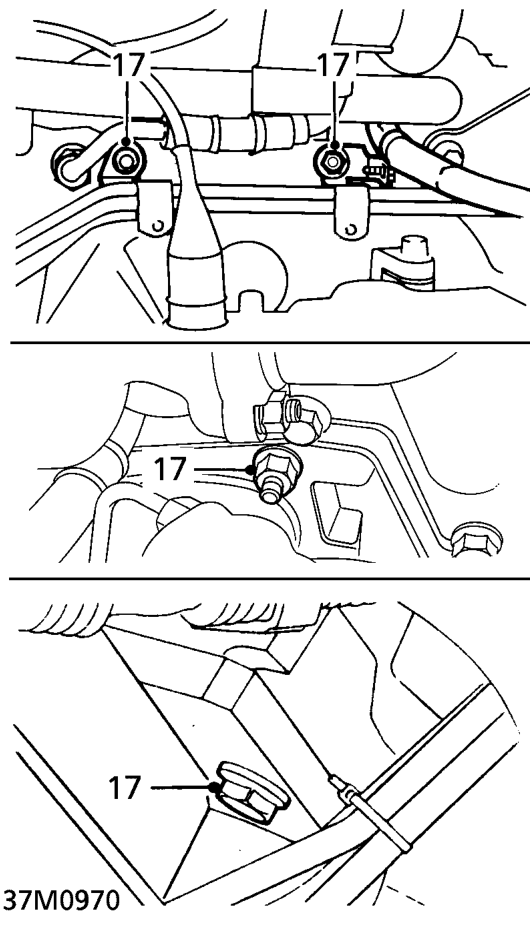

  1. Remove 3 bolts securing gear selector cable bracket to gearbox and remove bracket.
Remove 3 bolts securing gear selector cable bracket to gearbox and remove bracket.

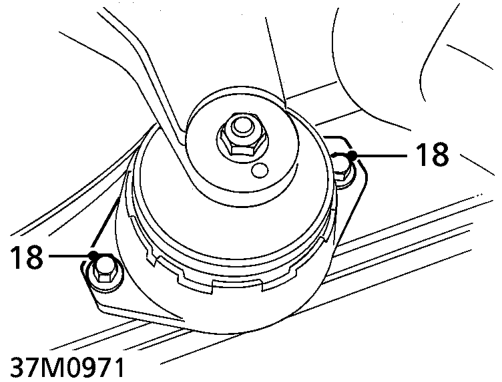

  1. Remove 3 nuts and 1 bolt securing gearbox to top of engine.
Remove 3 nuts and 1 bolt securing gearbox to top of engine.

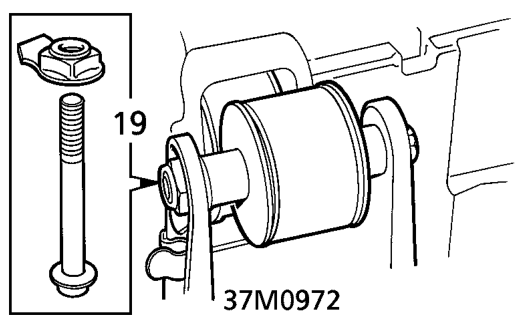

  1. Remove 2 bolts securing front engine mounting to crossmember.
Remove 2 bolts securing front engine mounting to crossmember.

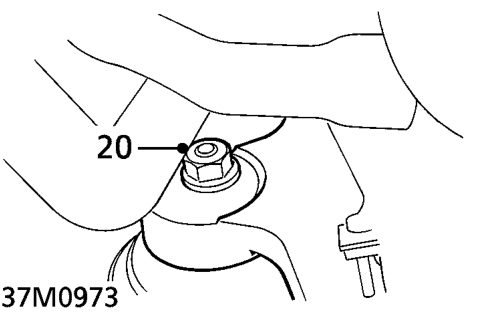

  1. Remove engine rear steady bar bolt to engine bracket. Remove nut.
Remove engine rear steady bar bolt to engine bracket. Remove nut.
  1. Remove rear engine mounting top nut.
  2. Remove LH drive shaft. See DRIVE SHAFTS, Repairs.
  3. Remove RH drive shaft. See DRIVE SHAFTS, Repairs.
