Rover 800 Workshop Manual (1996-1999)09 · Engine management system - EDC
09 · Engine

Injection pump timing - air conditioning (Engine management system - EDC) (page 3 of 5)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Adjustments
Engine management system - EDCInjection pump timing - air conditioning · page 3 of 5

Adjust

  1. Remove intercooler. See Repairs.
Remove intercooler. See Repairs.

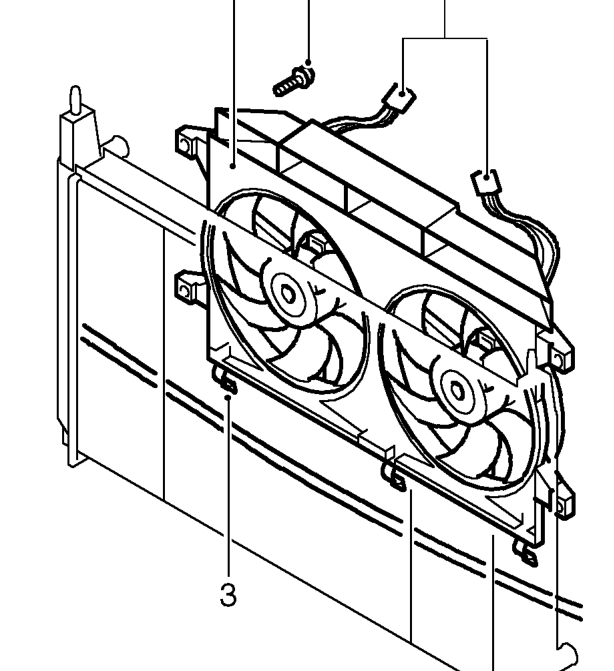

  1. Disconnect multiplugs from radiator cooling fans.
  2. Release 3 harness clips on underside of cooling fan housing.
  3. Remove 4 bolts securing cooling fan housing to radiator.
  4. Remove cooling fan housing.
Remove cooling fan housing.

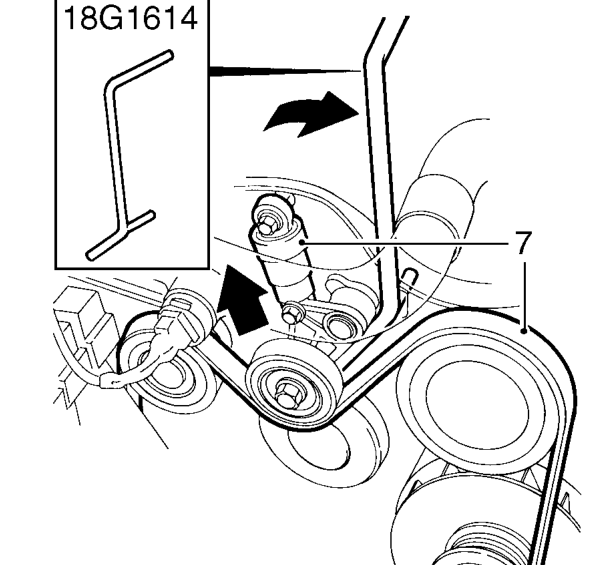

  1. Fit ancillary belt tensioning tool 18G 1614 to power steering pump bracket.
  2. Raise tensioner and release drive belt from PAS pump and alternator pulleys.
Raise tensioner and release drive belt from PAS pump and alternator pulleys.

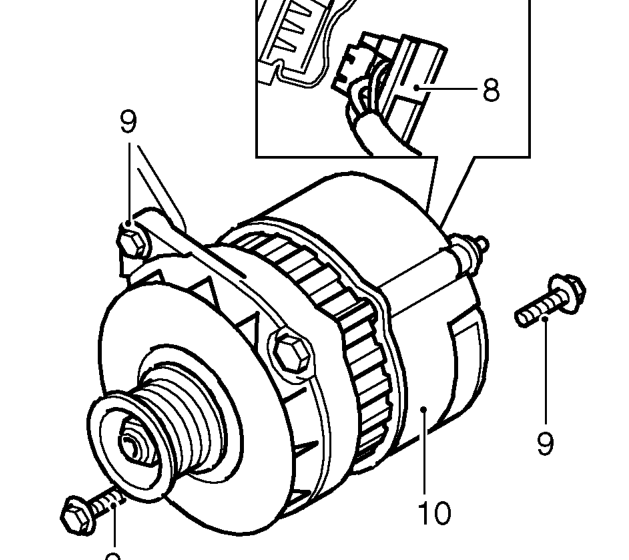

  1. Disconnect multiplug from alternator.
  2. Remove 3 bolts securing alternator.
  3. Remove alternator.
