INJECTOR PIPES - DIESEL MODELS

Service repair no - 19.60.14

Remove

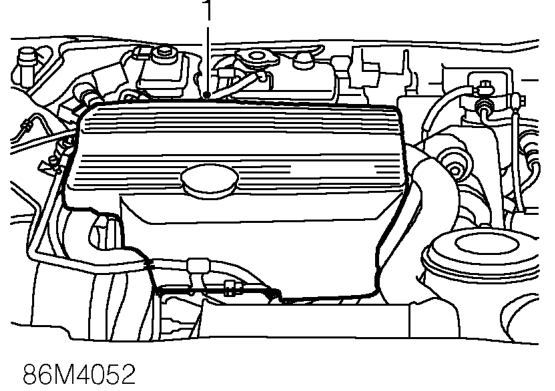

Injector pipes - diesel models – Service repair no - 19.60.14
  1. Remove engine acoustic cover.
  2. Disconnect battery earth lead.
  3. Remove underbelly panel. See BODY, Repairs.

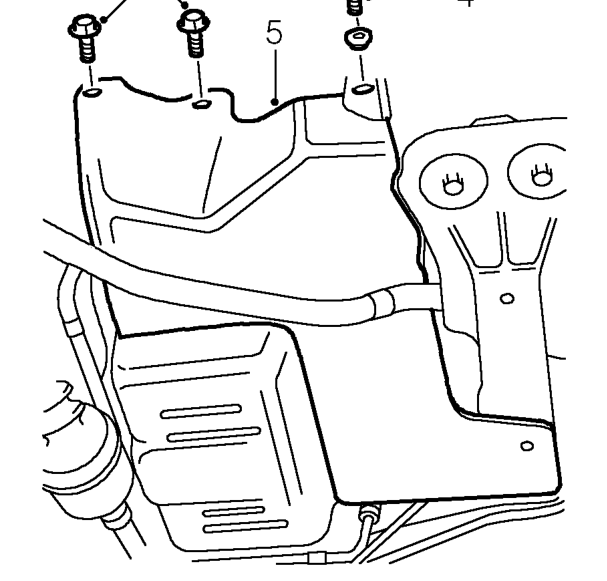

Injector pipes - diesel models – Remove underbelly panel. See BODY, Repairs.
  1. Remove 3 screws securing RH underbelly panel and collect spacer from front screw.
  2. Remove RH underbelly panel.

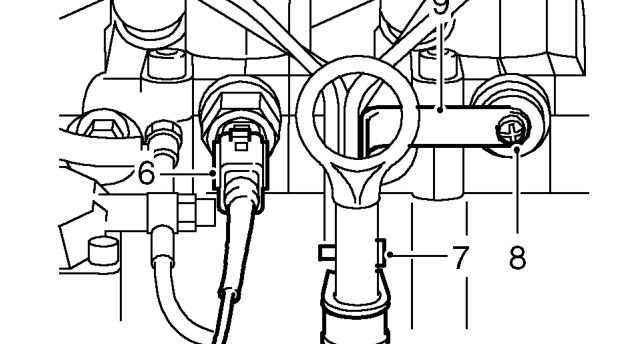

Injector pipes - diesel models – Remove RH underbelly panel.
  1. Disconnect coolant temperature sensor multiplug.
  2. Remove screw securing dipstick tube clip.
  3. Remove screw securing dipstick tube bracket to cylinder head.
  4. Remove bracket.
