Steering column (page 4 of 5)
- Make
- Rover
- Model
- 800 Workshop Manual
- Year
- 1996–1999
- Section
- Repairs
SteeringSteering column · page 4 of 5

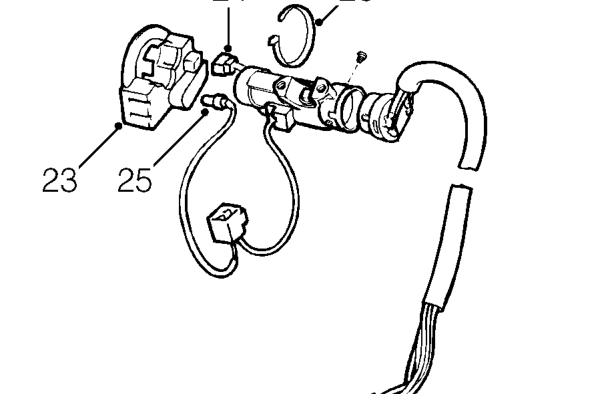

- Release passive coil from starter switch.
- Disconnect multiplug from passive coil.
- Release illumination bulb holder and remove passive coil.

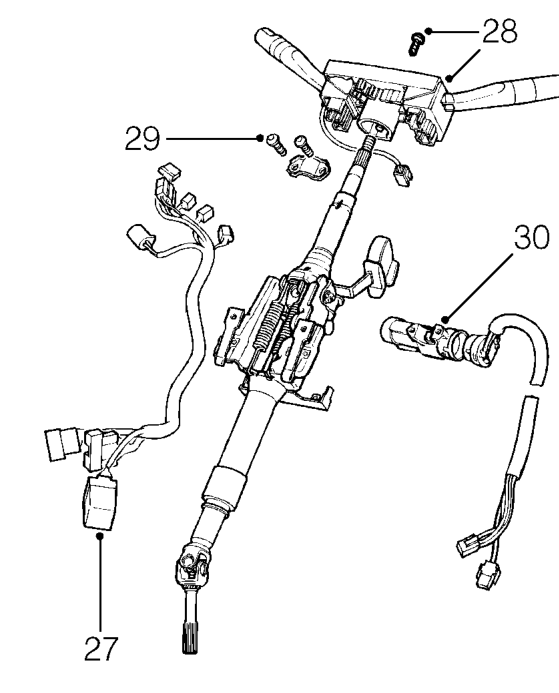

- Remove cable tie securing multiplug to ignition switch and disconnect multiplug.
- Release flasher unit from bracket on steering column.
- Loosen screw securing column switch assembly and remove switch assembly.
- Hold steering column in a vice and drill out starter switch saddle shear bolts.
- Remove switch saddle and switch.
- Remove bolt stubs from starter switch.
- Remove steering column from vice.
