Rover 800 Workshop Manual (1996-1999)19 · Steering
19 · Steering & suspension

Steering column (page 3 of 5)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
SteeringSteering column · page 3 of 5
Diagram

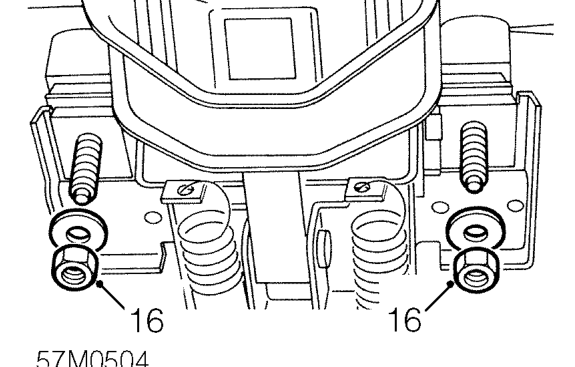

  1. Remove 2 nuts securing steering column to upper mounting.
  2. Remove steering column assembly. Do not carry out further dismantling if component is removed for access only.
Remove steering column assembly. Do not carry out further dismantling if component is remo

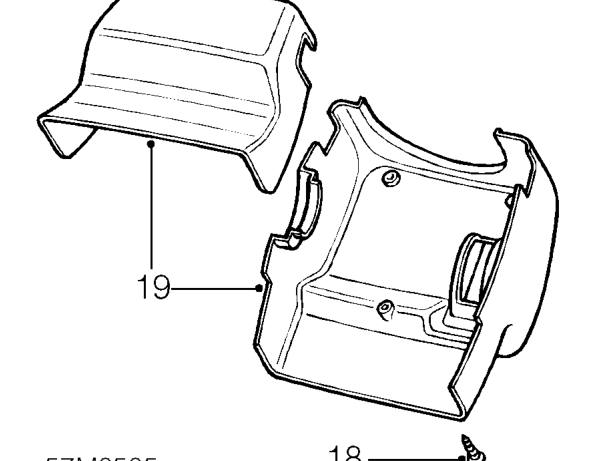

  1. Remove 3 screws securing lower half of column cowl.
  2. Separate and remove 2 halves of cowl.
Separate and remove 2 halves of cowl.

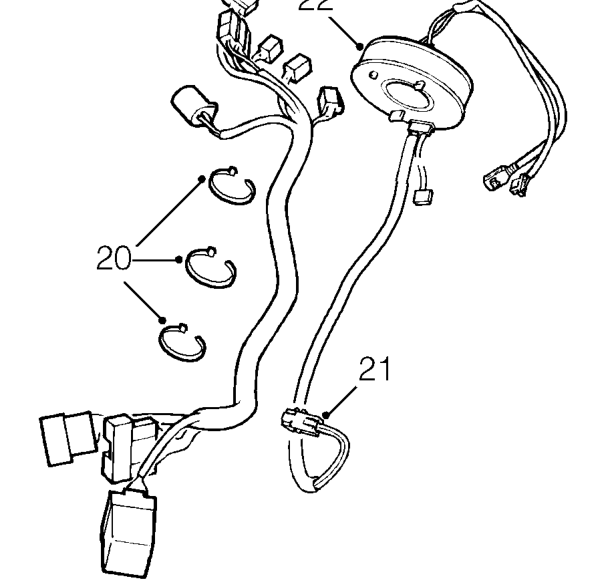

  1. Remove 2 cable ties securing rotary coupler harness to column switch harness and cable tie securing harnesses to column.
  2. Disconnect rotary coupler multiplug.
  3. Release 2 clips securing rotary coupler and remove rotary coupler.
