Heating & ventilationControl cable - air recirculation

CONTROL CABLE - AIR RECIRCULATION

Service repair no - 80.10.17

Remove

  1. Remove heater controls. See this section.

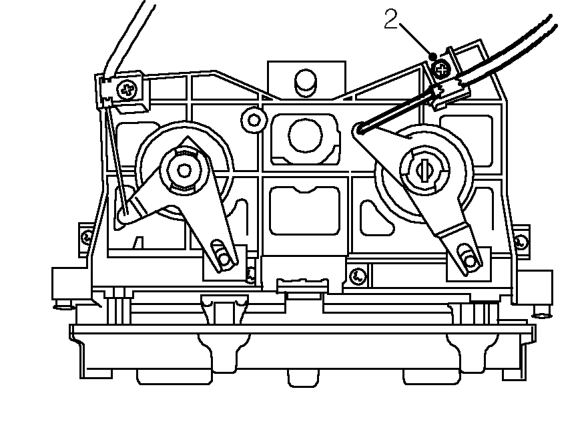

Control cable - air recirculation – Remove heater controls. See this section.
  1. Remove screw securing air recirculation cable and remove from heater controls.

Refit

  1. Fit air recirculation cable to heater controls and secure with screw.
  2. Fit heater controls. See this section.

HEATER VALVE

Service repair no - 80.10.16

Remove

  1. Position drain tin to collect any spillage.

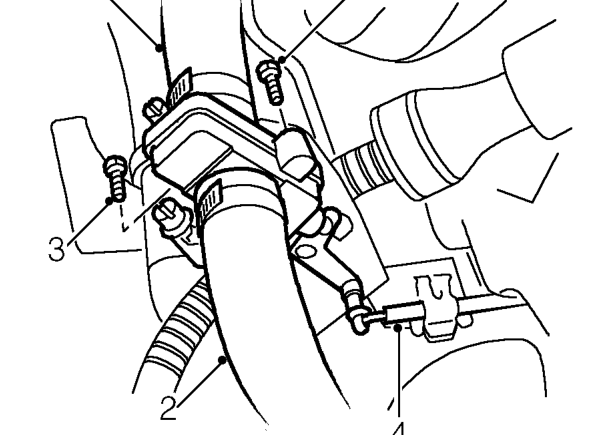

Heater valve – Position drain tin to collect any spillage.
  1. Loosen clips and release coolant hoses from both sides of heater valve.
  2. Undo 2 screws securing heater valve to mounting bracket.
  3. Release heater valve from cable and remove.

Refit

  1. Fit heater valve to mounting bracket and tighten screws.
  2. Connect heater cable to heater valve.
  3. Connect both coolant hoses to heater valve and secure with clips.
  4. Refill cooling system. See COOLING SYSTEM - ’K’ SERIES, Adjustments.
