Heating & ventilationHeater

HEATER

Service repair no - 80.20.01

Remove

  1. Disconnect battery earth lead.
  2. Position drain tray to collect any coolant spillage.

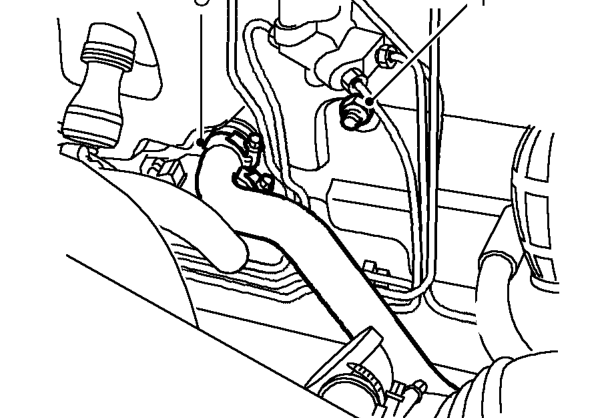

Heater – Position drain tray to collect any coolant spillage.
  1. Release clips and remove coolant hoses from heater pipes.
  2. Remove nut securing heater to bulkhead.
  3. Remove fascia. See BODY, Interior trim components.

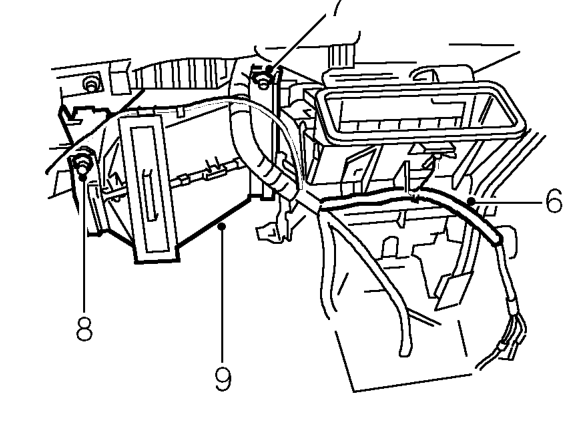

Heater – Remove fascia. See BODY, Interior trim components.
  1. Release harness from heater.
  2. Remove screw securing heater to heater duct.
  3. Remove screw securing heater duct to blower assembly.
  4. Remove heater duct.

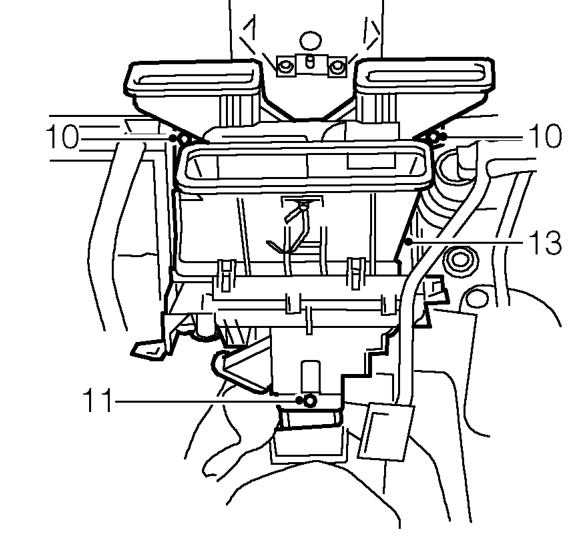

Heater – Remove heater duct.
  1. Remove nuts securing heater to bulkhead.
  2. Remove trim stud securing heater to centre console duct.
  3. Release duct from heater.
  4. Remove heater from vehicle.

CAUTION: Be careful not to allow any coolant in the heater matrix to spill into the interior of the vehicle.

Refit

  1. Position heater to vehicle.
  2. Fit nuts securing heater to bulkhead and tighten to 22 Nm.
  3. Position duct to heater and secure with trim stud.
  4. Fit heater duct between blower assembly and heater and secure with screws.
  5. Secure harness to heater.
  6. Fit fascia. See BODY, Interior trim components.
  7. Fit nut securing heater to bulkhead and tighten to 22 Nm.
  8. Fit coolant hoses to heater pipes and secure with clips.
  9. Top-up cooling system. See MAINTENANCE.
  10. Connect battery earth lead.
